Brand: d&b audiotechnik

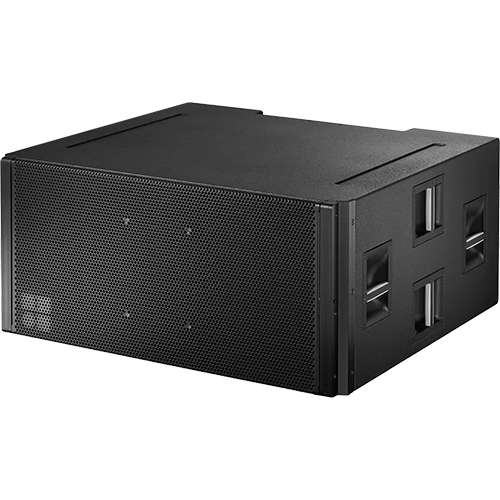

  • KSL-GSUB Subwoofer

    KSL-GSUB Subwoofer

    The KSL-GSUB is a cardioid subwoofer designed specifically for ground-stacked configurations within the KSL System, providing low frequency extension for KSL8 and KSL12 loudspeakers. This high-performance subwoofer features an active 2-way bass-reflex architecture and houses three long excursion 15-inch neodymium drivers. Two drivers project forward, while one is rear-facing, with each operating in separate bass reflex chambers powered by individual amplifier channels. The KSL-GSUB delivers a cardioid dispersion pattern that significantly minimises rearward sound radiation, enhancing clarity by reducing low frequency build-up in reverberant environments. Its frequency response ranges from 36 Hz to 105 Hz, or from 33 Hz to 75 Hz when operated in INFRA mode. Constructed from marine-grade plywood and finished with durable Polyurea Cabinet Protection, the KSL-GSUB is engineered for reliability in demanding conditions. Runners on the base and interlocking recesses on the top provide stability when stacking multiple units. The cabinet is front and rear shielded by robust metal grilles.

    Medium to large format cardioid subwoofer

    • Components 3 x 15”
    • Dispersion Cardioid
    • SPLmax 139 dB
    • Weight 78 kg / 172 lb

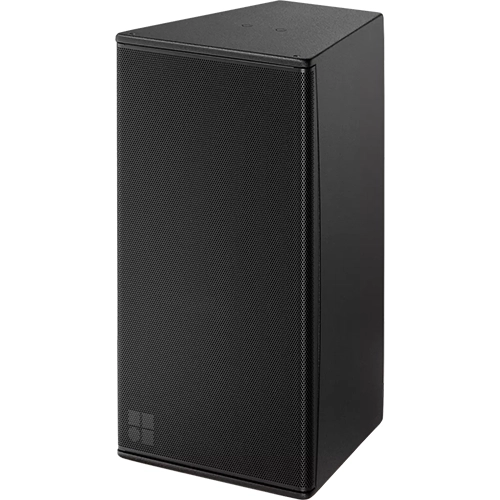

  • 12S Loudspeaker

    12S Loudspeaker

    The biaxial 12S 12S D loudspeakers are high-performance passive two-way systems, each featuring a single 12 inch neodymium driver within a bass reflex enclosure. Designed for a broad range of installed sound applications, both models include a 1.4 inch exit compression driver and offer extended frequency response from 48 Hz to 18 kHz, allowing for use as full range systems or in combination with xS Series subwoofers. The 12S provides a rotatable 75 by 50 degree dispersion, while the 12S D offers a wider 110 by 55 degree coverage. Constructed from marine-grade plywood and coated in a durable black finish, the cabinets meet DIN 18032 3 impact resistance standards, making them suitable for educational and sports facilities. A robust metal grille with acoustic foam protects the front, and integrated M10 and M8 mounting points support flexible installation. Both models are available in RAL custom colours or with an IP55 rated Weather Resistant option.

    Installation specific high performance 2-way loudspeaker

    • Components 12″/1.4″
    • Dispersion 75° x 50° rotatable
    • SPLmax 133 dB
    • Weight 17 kg / 37 lb

  • CCL Subwoofer

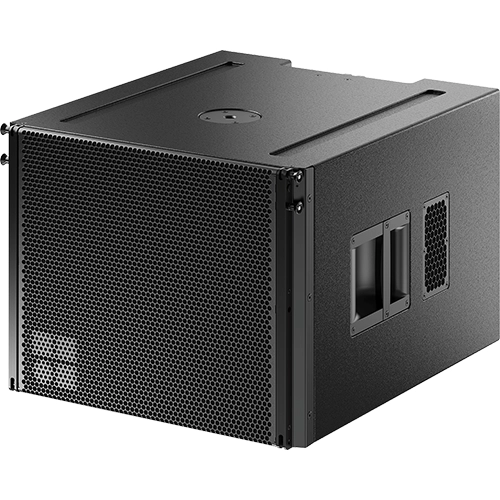

    CCL Subwoofer

    The CCL SUB is a compact, high-performance cardioid subwoofer designed for professional audio applications. Featuring an integrated cardioid configuration, it includes two neodymium long-excursion drivers: a 15 inch driver in a front-facing bass-reflex design and a 10 inch driver in a rear-facing dual-chamber bandpass system. This arrangement enables a cardioid dispersion pattern powered by a single amplifier channel. The CCL SUB delivers a frequency response from 39 Hz to 150 Hz. Constructed from durable marine-grade plywood, the enclosure is coated with a robust weather-resistant 2K finish. Both front and rear are shielded by a metal grille lined with acoustically transparent, water-repellent fabric. Integrated side handles and rear-mounted heavy-duty wheels support ease of transport. Two bottom runners protect the base, aligning with recessed grooves on the top panel for secure stacking. An M20 threaded insert on the top panel allows pole mounting of compatible top cabinets, making the CCL SUB suitable for flexible deployment in demanding environments.

    Mobile specific small to medium format flyable cardioid subwoofer

    • Components 1 x 15” + 1 x 10”
    • Dispersion Cardioid
    • SPLmax 132 dB
    • Weight 44.5 kg / 98 lb

  • E15X Subwoofer

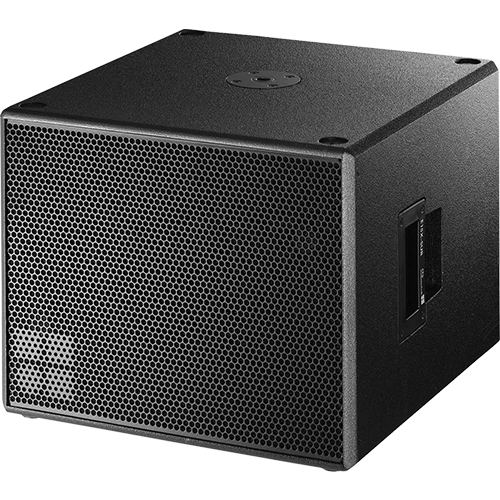

    E15X Subwoofer

    The E15X SUB is a compact and efficient subwoofer engineered to complement d&b E Series loudspeakers. Designed with a built-in passive crossover, the E15X SUB can be connected in parallel with E12 or E12 D models on a single amplifier channel, enhancing low frequency output and overall system bandwidth. It also supports active operation via a dedicated amplifier channel, without requiring internal adjustments, allowing it to reinforce any E Series cabinet. The E15X SUB features a robust marine plywood enclosure with a durable, impact-resistant finish, integrated handles for portability, and an M20 threaded top flange compatible with the d&b loudspeaker stand winder. Available in both Special Colour (SC) and Weather Resistant (WR) variants, the WR version of the E15X SUB meets IP55 standards, making it suitable for outdoor use in varied environmental conditions. This combination of flexibility and performance makes the E15X SUB a reliable choice for professional audio applications.

    Compact subwoofer

    • Components 15″
    • Dispersion Omni directional
    • SPLmax 130 dB
    • Weight 24 kg / 53 lb

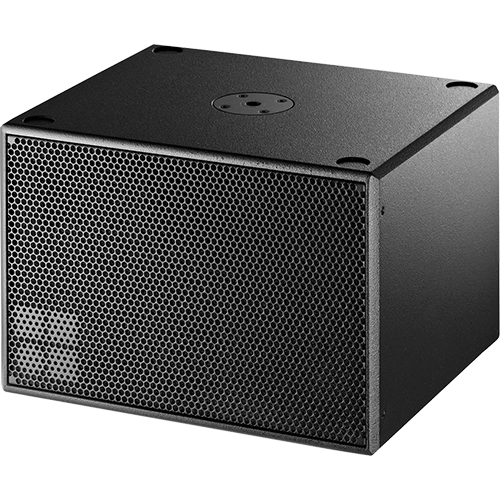

  • E12X Subwoofer

    E12X Subwoofer

    The d&b E12X SUB is a compact and lightweight subwoofer engineered to deliver high-performance low frequency reinforcement within the d&b E Series. Designed with a built-in passive crossover, the d&b E12X SUB can be connected in parallel with the E8 loudspeaker, using a single amplifier channel to significantly enhance low frequency extension and headroom. When used in Active mode, it requires a dedicated amplifier channel and can support any loudspeaker within the E Series range without hardware modifications. The cabinet of the d&b E12X SUB is built from marine-grade plywood, featuring an impact-resistant finish, integrated handle, and an M20 threaded top flange to accommodate the d&b Loudspeaker stand winder M20. For diverse application needs, the d&b E12X SUB is available in Special Colour and Weather Resistant versions. The Weather Resistant model achieves an IP55 rating, enabling dependable performance in variable environmental conditions.

    Compact subwoofer

    • Components 12″
    • Dispersion Omni directional
    • SPLmax 127 dB
    • Weight 18 kg / 40 lb

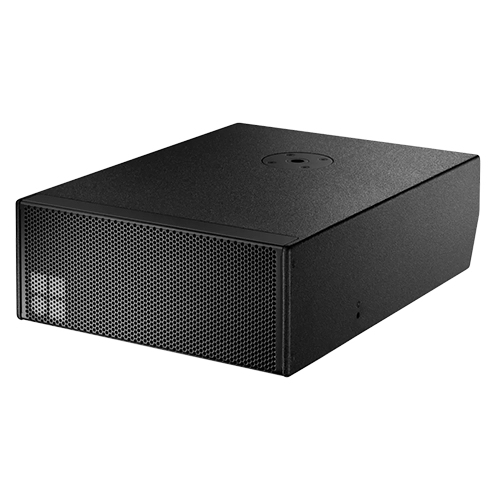

  • Bi8 Subwoofer

    Bi8 Subwoofer

    The Bi8 SUB is a highly compact installation subwoofer designed to complement d&b audiotechnik’s xC, xS and E Series loudspeakers. As the installation variant of the B8 subwoofer, the Bi8 SUB shares identical acoustic performance, differing only in enclosure design and mounting features. It incorporates two 6.5-inch drivers within a bass reflex housing, delivering extended low frequency performance from 43 Hz to 170 Hz. When set to 100 Hz mode, the upper limit narrows to 125 Hz. With a height of just 170 millimetres, the Bi8 SUB is well suited to discreet integration in smaller environments requiring enhanced low frequency output and high sound pressure levels. The subwoofer can be installed either horizontally or vertically, with M8 threaded inserts on each side panel for bracket attachment. The Bi8 SUB features a durable marine plywood enclosure finished in black, with a protective metal grille and connectivity options including NL4 connectors and a two-pole screw terminal. SC and WR (IP55) versions are available.

    Installation specific ultra compact subwoofer

    • Components 2 x 6.5″
    • Dispersion omnidirectional
    • SPL max 122 dB
    • Weight 17 kg / 37.5 lb

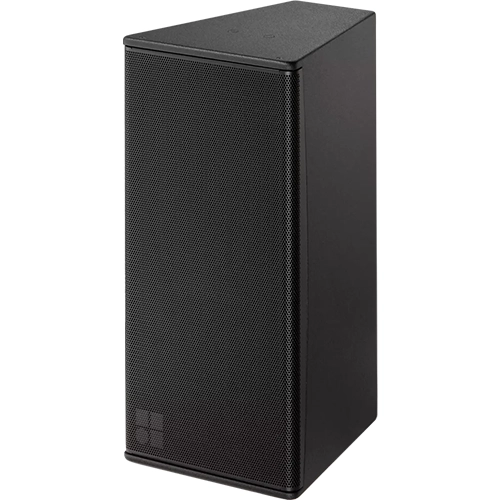

  • 10S-D Loudspeaker

    10S-D Loudspeaker

    The biaxial 10S 10S-D are high-performance passive loudspeakers designed for professional applications requiring precise sound coverage. Each model features a single 10-inch neodymium driver in a bass-reflex enclosure, with distinct high-frequency sections and rotatable dispersion angles of 75 by 50 degrees for the 10S and 110 by 55 degrees for the 10S-D. Delivering a frequency response from 60 hertz to 18 kilohertz, both versions of the 10S 10S-D are suitable for full-range use and can be combined with compatible subwoofers from the xS-Series. The enclosures are built from marine-grade plywood with a durable black paint finish and meet DIN 18032-3 impact resistance standards, making them suitable for use in educational and sports facilities. A robust metal grille with acoustic foam protects the front, while integrated M10 and M8 mounting points support flexible installation. The 10S 10S-D is available in custom RAL colours and a weather-resistant version rated IP55 for outdoor use.

    Installation specific high performance 2-way loudspeaker with wide dispersion

    • Components 10″/1.4″
    • Dispersion 110° x 55° rotatable
    • SPLmax 130 dB
    • Weight 13 kg / 29 lb

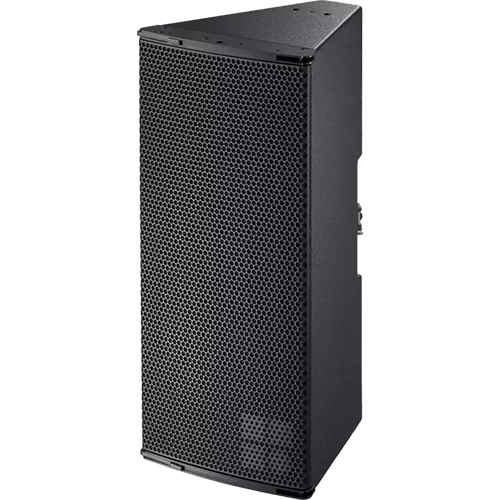

  • 10S Loudspeaker

    10S Loudspeaker

    The biaxial 10S and 10S D are high-performance two-way loudspeakers designed for professional applications, each featuring a 10 inch neodymium driver within a bass reflex enclosure. The 10S and 10S D differ in their high-frequency components, offering rotatable dispersion angles of 75 by 50 degrees and 110 by 55 degrees, respectively, to ensure precise directional control. With a frequency response ranging from 60 hertz to 18 kilohertz, both models function effectively as standalone full range systems and can be paired with xS Series subwoofers for extended low-end reinforcement. Housed in marine-grade plywood cabinets with a durable black paint finish, the 10S and 10S D loudspeakers meet DIN 18032-3 Ball Impact Resistance standards, making them suitable for educational and sports facilities. The cabinets include M10 and M8 mounting points, NL4 connectors, and a two-pole screw terminal. Optional features include IP55-rated Weather Resistant versions and Special Colour finishes in any RAL colour.

    Installation specific high performance 2-way loudspeaker

    • Components 10″/1.4″
    • Dispersion 75° x 50° rotatable
    • SPLmax 130 dB
    • Weight 13 kg / 29 lb

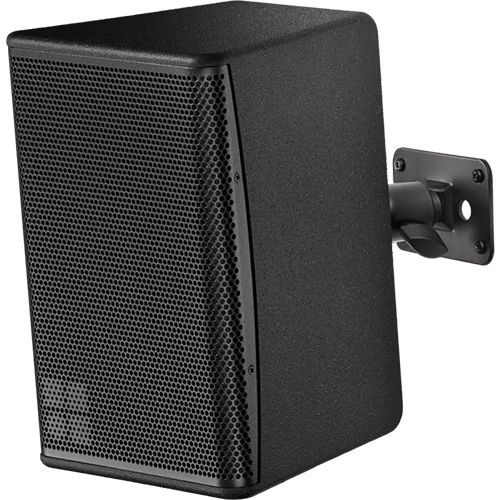

  • 8S Loudspeaker

    8S Loudspeaker

    The 8S loudspeaker is a compact, full-range, two-way system housed in a bass-reflex enclosure, featuring an integrated 8-inch and 1-inch coaxial driver with a passive crossover. Designed to deliver consistent performance, the coaxial configuration ensures symmetrical dispersion across both horizontal and vertical axes, allowing flexible mounting orientations. With a frequency range of 70 Hz to 20 kHz, the 8S loudspeaker performs effectively as a standalone unit and can be paired with xS-Series subwoofers for extended low-frequency output. The cabinet is built from durable marine-grade plywood and finished in robust black or white paint. A metal grille with acoustically transparent backing protects the front, while M8 threaded inserts on the top, bottom and rear enable secure installation. Connection options include dual NL4 sockets and a two-pole screw terminal. The 8S loudspeaker is also offered in a Special Colour variant in any RAL shade and a Weather Resistant version rated to IP54 for use in varied environmental conditions.

    Installation specific 2-way compact coaxial loudspeaker

    • Components 8″/1″
    • Dispersion 100° conical
    • SPLmax 127 dB
    • Weight 7.4 kg / 16 lb

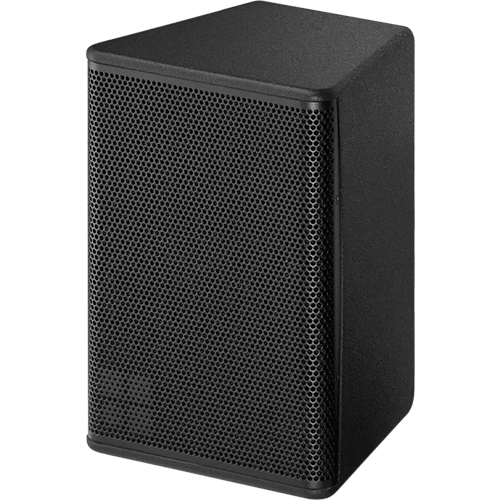

  • 5S Loudspeaker

    5S Loudspeaker

    The 5S is a compact two-way passive loudspeaker designed for professional audio applications, featuring a ferrite low-frequency driver and a coaxially mounted dome tweeter for wide dispersion. Utilising a 5-inch driver within a bass-reflex enclosure, the 5S loudspeaker delivers consistent symmetrical dispersion across both horizontal and vertical axes and can be installed in either orientation. Suitable for standalone use or integration with subwoofers from the xS-Series, the 5S is housed in an injection-moulded enclosure with a robust, weather-resistant finish available in black or white, compliant with IP34 standards. A durable metal grille with acoustically transparent backing protects the front. Rear panel connections include two NL4 sockets, a two-pole screw terminal block, and dual M8 threaded inserts for mounting. The 5S loudspeaker and its compatible accessories are also offered with a Special Colour option, enabling customisation in any RAL shade, providing installation flexibility in a range of architectural and commercial environments.

    Installation specific 2-way compact coaxial loudspeaker

    • Components 5″/1″
    • Dispersion 100° conical
    • SPLmax 118 dB
    • Weight 2.5 kg / 5.5 lb
