Brand: d&b audiotechnik

The Yi12 line array loudspeaker is a compact, 2-way passive speaker engineered for fixed installation in vertical array configurations. Featuring two 8-inch drivers arranged in a dipole format and a centrally positioned 1.4-inch compression driver with an integrated wave transformer, the Yi12 delivers consistent performance across a wide frequency range. It offers precise 120-degree horizontal dispersion maintained down to 500 Hz, thanks to advanced horn design and optimised bass-reflex ports. The Yi12 loudspeaker supports vertical arrays of up to twenty-four units, with splay angles adjustable from 0 to 14 degrees in 1-degree increments. Designed specifically for permanent installations, the Yi12 differs from the touring Y12 model in terms of enclosure materials, surface finish, and mounting options. The enclosure is built from marine-grade plywood with a robust paint coating. Versions with IP55-rated Weather Resistant (WR) and Special Colour (SC) finishes are also available, enabling the Yi12 loudspeaker to operate reliably in varied environmental conditions.

Installation specific high performance 2-way passive line array loudspeaker

• Components 2 x 8″/1.4″
• Dispersion 120°
• SPLmax 139 dB
• Weight 20 kg / 44 lb

The compact Y12 line array loudspeaker is engineered for vertical column applications, delivering precise performance in professional audio environments. This 2-way passive system incorporates two 8-inch drivers in a dipole configuration, paired with a centrally located 1.4-inch compression driver and wave transformer. Its refined horn structure and optimised bass-reflex ports ensure wide frequency response and enhanced low-frequency output. Designed to provide 120-degree horizontal dispersion with consistent control down to 500 Hz, the Y12 line array loudspeaker supports vertical configurations of up to twenty-four units with splay angles adjustable from 0 to 14 degrees in 1-degree steps. It can operate as a standalone Y12 column or integrate with Y8 and Y-SUB modules. Constructed from marine-grade plywood, the enclosure features a durable Polyurea Cabinet Protection finish and is fitted with a robust metal grille backed by acoustically transparent foam. Integrated rigging hardware and ergonomic handles support straightforward deployment in demanding touring and installation scenarios.

High performance 2-way passive line array loudspeaker

• Components 2 x 8″/1.4″
• Dispersion 120°
• SPLmax 139 dB
• Weight 20 kg / 44 lb

The XSLi12 is a purpose-built line array module developed for permanent installation in small to mid-sized sound reinforcement environments. Designed for flexibility, it can also function within KSLi Systems as a fill or delay solution. For stadium environments, the XSLi12 SVS variant features bespoke rigging and an IP55-rated enclosure for outdoor use, while maintaining identical acoustic characteristics. Special Colour and Weather Resistant options further extend application versatility. Capable of vertical deployment with up to twenty-four cabinets using the XSLi Flying frame, or twelve with the XSLi Mounting frame, the XSLi12 delivers a 120-degree horizontal dispersion. Internally, it integrates forward and side-firing neodymium LF drivers, a horn-loaded MF driver, and dual HF compression drivers for consistent directivity from low frequencies through to 18 kHz. Driven by a d and b amplifier using two channels, the XSLi12 supports precise performance control. The cabinet is constructed from impact-resistant PC-ABS with weather-resistant finishes and features metal grills and integrated lifting slots.

Installation specific small to medium format 3-way line array loudspeaker

• Components LF: 2 x 8″ + 2 x 6.5″; MF: 1 x 6.5″; HF: 2 x 1″ exit compression driver with 2″ coil
• Dispersion 120°
• SPLmax 140 dB

Weight 39 kg / 86 lb

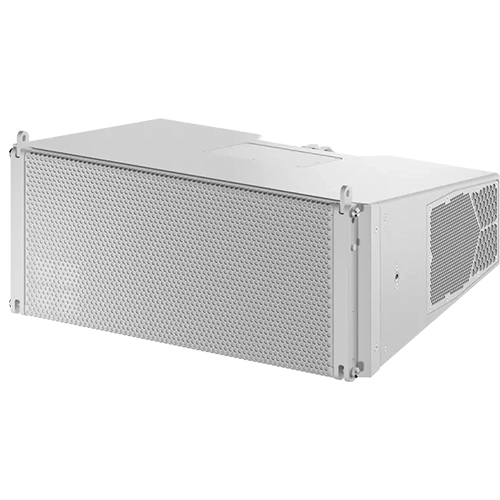

The XSLi8 line array module is engineered for fixed installations, delivering precise sound reinforcement for small to mid-sized venues. It also functions effectively as a fill or delay system alongside KSLi arrays. A specialised Stadium Version, the XSLi8 SVS, features custom rigging options to meet the demands of permanent outdoor use, maintaining identical acoustic performance to the standard model within a robust IP55-rated enclosure. Available in Special Colour and Weather Resistant variants, the XSLi8 supports vertical arrays of up to twenty-four cabinets with the XSLi Flying frame and up to twelve with the Mounting frame. Its design integrates dual eight-inch neodymium LF drivers, side-firing six-point-five-inch LF drivers, a horn-loaded MF driver, and dual high-frequency compression drivers, ensuring consistent horizontal dispersion of 80 degrees. Driven by two amplifier channels, the XSLi8 allows for Line or Arc mode pairing, while splay angles from zero to fourteen degrees offer configuration flexibility. The enclosure combines PC ABS construction with water-resistant materials for long-term durability.

Install specific small to medium format 3-way line array loudspeaker

• Components LF: 2 x 8″ + 2 x 6.5″; MF: 1 x 6.5″; HF: 2 x 1″ exit compression driver with 2″ coil
• Dispersion 80°
• SPLmax 141 dB
• Weight 39 kg / 86 lb

Article number Z0776

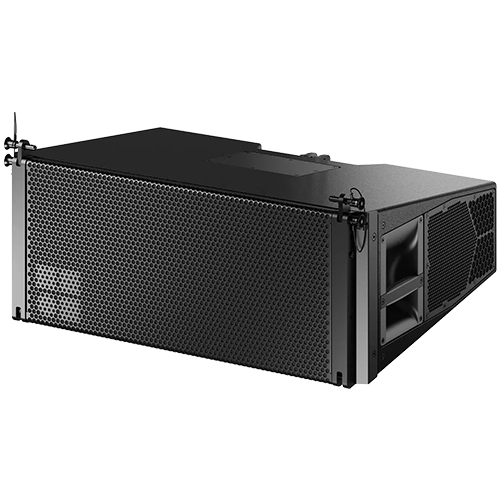

The XSL12 line array module is specifically engineered for mobile use in small to mid-sized sound reinforcement scenarios. It also integrates effectively into larger GSL and KSL setups for fill or delay applications. The XSL12 can be deployed in vertical columns of up to twenty-four or twenty-two cabinets using XSL Flying frames in compression or tension mode, or up to twelve cabinets with the compact XSL Mounting frames. It offers a horizontal dispersion of 120 degrees. Internally, the XSL12 features two forward-facing 8 inch neodymium low-frequency drivers, two 6.5 inch side-firing neodymium low-frequency drivers, one horn-loaded 6.5 inch mid-frequency driver, and two 1 inch high-frequency compression drivers with 2 inch voice coils. Its acoustic design ensures consistent directivity from 60 Hz to over 18 kHz. The cabinet is powered by two amplifier channels and features durable PC ABS housing with weather protection and integrated rigging hardware for precise splay angle adjustment.

Mobile specific small to medium format 3-way line array loudspeaker

• Components LF: 2 x 8″ + 2 x 6.5″; MF: 1 x 6.5″; HF: 2 x 1″ exit compression driver with 2″ coil
• Dispersion 120°
• SPLmax 140 dB
• Weight 39 kg / 86 lb

The XSL8 is a compact line array loudspeaker module specifically engineered for mobile use and small to mid-sized sound reinforcement applications. It also integrates effectively with larger GSL and KSL Systems for fill or delay support. The XSL8 enables vertical arrays of up to 24 cabinets in compression or 22 in tension mode using the XSL Flying Frame, and up to 12 cabinets with the XSL Mounting Frame. These arrays deliver an 80-degree constant horizontal dispersion.

The loudspeaker features two forward-facing 8-inch neodymium LF drivers, two side-firing 6.5-inch neodymium LF drivers, one horn-loaded 6.5-inch MF driver, and two 1-inch exit HF compression drivers with 2-inch voice coils, optimised by a wave shaping device. Its unique driver configuration and system processing provide directivity control from 60 Hz to above 18 kHz.

Mobile-optimised 3-way line array loudspeaker for small to mid-scale applications

• Drivers LF: 2 x 8″ and 2 x 6.5″; MF: 1 x 6.5″; HF: 2 x 1″ exit compression drivers with 2″ voice coils
• Horizontal Coverage: 80°
• Maximum Sound Pressure Level: 141 dB
• Net Weight: 39 kg / 86 lb

The Vi12 is a professional 3-way passive line array loudspeaker, featuring two 10-inch low-frequency drivers, a horn-loaded 8-inch midrange driver, and two 1.4-inch high-frequency compression drivers with 2.5-inch voice coils. These components are integrated into a coaxial configuration, enabling precise frequency band alignment through a carefully engineered crossover. The symmetrical dipolar layout of the neodymium low-frequency drivers surrounding the centrally positioned mid and high-frequency elements ensures consistent 120-degree horizontal dispersion, maintained down to 250 Hz.

Designed for use in vertical arrays of up to twenty-four units, the Vi12 is suitable for both standalone column configurations and mixed setups with Vi8 loudspeakers and Vi-SUBs. The cabinet is built from durable marine-grade plywood and finished with a robust Polyurea Cabinet Protection coating, offering resistance to physical impact and environmental exposure. A rigid metal grille with acoustically transparent foam provides additional protection for the front of the unit.

• Application: High-performance 3-way passive line array loudspeaker designed specifically for installation use
• Driver Configuration: Includes 2 x 10-inch LF drivers, 1 x 8-inch MF driver, and 2 x 1.4-inch HF drivers
• Dispersion: Offers a wide 120° horizontal coverage
• Sound Pressure Level: Delivers a maximum SPL of 142 dB
• Weight: Weighs 34 kg (75 lb)
