The d&b U-Series is a high-performance line array loudspeaker system engineered for large-scale sound reinforcement in arenas, stadiums, concert tours, and major live events. Designed to deliver exceptional power, precision, and consistent coverage, the U-Series ensures outstanding speech intelligibility and musical clarity across every seat in the venue. With advanced acoustic design and d&b’s innovative ArrayProcessing technology, it provides optimized directivity control and uniform tonal balance from front to back. Its modular and scalable configuration makes it ideal for both permanent installations and touring applications, fully integrated with d&b amplifiers and system control solutions. As a trusted d&b distributor in Dubai, we provide genuine d&b U-Series loudspeakers, professional audio solutions, system design support, and expert technical assistance across the region.
Brand: d&b audiotechnik
-

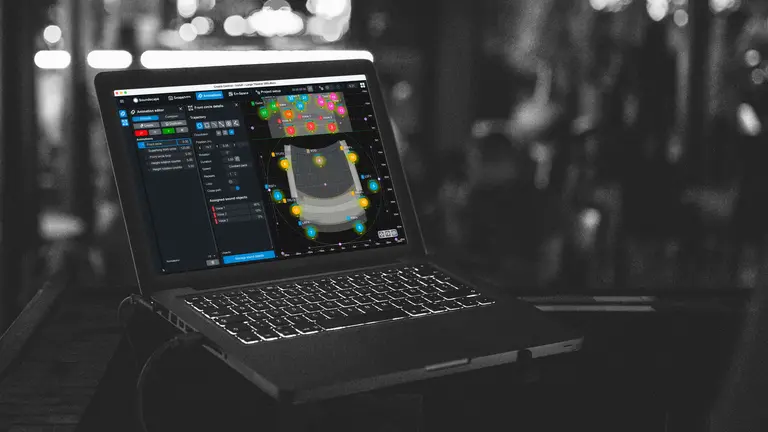

Create Control
Create.Control offers a simplified method for engaging with Soundscape, removing the need for detailed system design tools. Developed specifically for mix engineers, Create.Control enables the construction of dynamic mixes alongside the generation of accurate show control data. This standalone software supports flexible sound object management, allowing users to position and manipulate audio in both space and time. Through the use of snapshots and animations, it becomes straightforward to save and recall configurations, positions, transitions, and movements throughout a performance. The software also includes access to En-Space master settings, providing control over room acoustic parameters to shape the desired listening environment. Additionally, Create.Control integrates with venue data from ArrayCalc, making it possible to adapt creative work to suit specific performance spaces. This approach allows engineers to maintain their artistic intent while accommodating the technical demands of varied environments, enhancing both preparation and execution in live sound scenarios.
- Intuitive visual interface designed for a mixing workflow
- Unlocks extensive object and show control possibilities
- Rescale or stretch show in real-time, including asymmetrically
- Support for new DS100 I/O sizes (64×24 – 64×64 – 128×64)
- Available for both Microsoft Windows and macOS operating systems
-

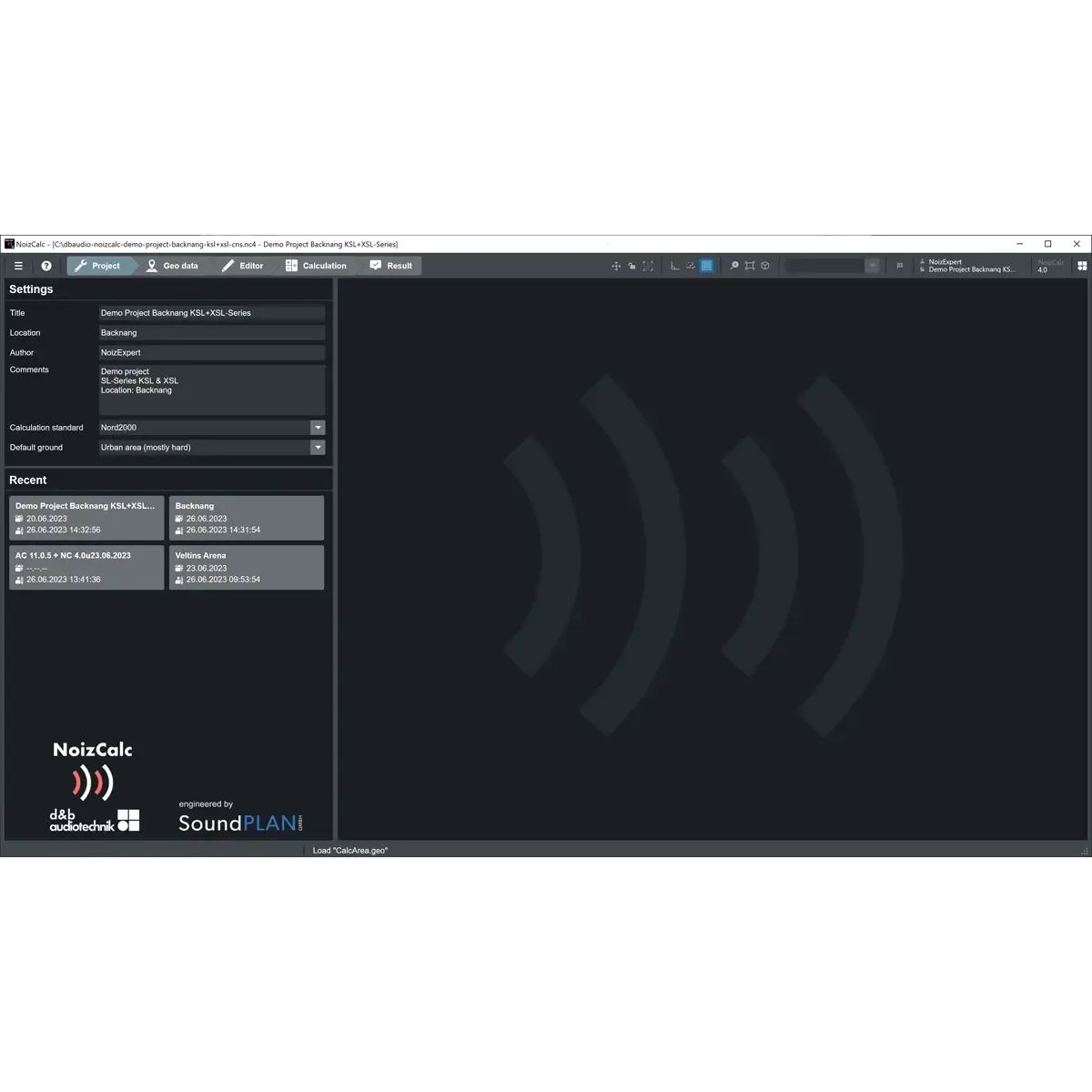

NoizCalc
d&b NoizCalc software enables accurate simulation of sound propagation from d&b sound systems in outdoor environments. Drawing on data from the d&b ArrayCalc simulation platform, it generates detailed noise contour maps aligned with recognised international standards. This allows for precise control of sound distribution, ensuring optimal audio delivery to the intended audience while limiting exposure beyond the designated area. d&b NoizCalc supports complex system configurations incorporating a range of d&b loudspeakers, including line arrays, point sources, subwoofer arrays, fill systems, and delay lines. Users can model and evaluate various system setups, adjusting placement and amplification parameters to meet specific acoustic requirements. Developed in partnership with SoundPLAN, a leader in environmental noise prediction software, d&b NoizCalc is a valuable planning tool for system designers working to meet both performance objectives and regulatory compliance in open-air event scenarios.
Noise prediction software for d&b systems
- Accurately predict sound propagation of d&b systems at outdoor events
- Choice of international standards for calculations (CNOSSOS-EU, ISO 9613-2 and Nord2000)
- Import system settings directly from ArrayCalc
- Geodata import from Google Maps and OpenStreetMap
-
ArrayCalc
The d&b ArrayCalc simulation software is an essential planning tool for configuring d&b line arrays, point source and column loudspeakers, as well as subwoofers. Designed for both Windows and macOS, this stand-alone application supports all aspects of acoustic system design, from performance prediction and alignment to rigging details and safety verification. The use of d&b ArrayCalc is mandatory when designing d&b line array systems to ensure compliance with safety standards. Users can define audience areas in three dimensions, align sources in time, and calculate phase response between flown systems and ground-based subwoofer arrays. The software visualises level distribution across the audience area and offers export options including EASE and DXF formats. Remote ID management is integrated via the amplifier tab. Data created in d&b ArrayCalc is directly utilised by the R1 Remote control software, which generates a graphical interface for system control, eliminating the need for manual data transfer between applications.
- available as a native stand-alone application for both Microsoft Windows and macOS operating systems
- can significantly reduce setup and tuning time in mobile applications and allows for precise initial simulations when planning installations
- Listening planes can be defined in the venue tab, creating a three dimensional representation of any audience area in a given venue
- In the Soundscape View the Soundscape simulation now works in 3D
-
R1 Remote Control
The R1 Remote control software provides a comprehensive graphical interface for managing d&b systems, displaying each amplifier channel, loudspeaker, and group with user-defined faders and control elements. It offers precise adjustments for equalisation, delay, level, filter options, Mute, and power settings, with an offline mode enabling configuration in advance of deployment. R1 Remote control software imports system data directly from d&b ArrayCalc, using the simulation file to create a project-specific interface that reflects the optimised loudspeaker and amplifier setup. This ensures all system parameters are accurately represented and can be efficiently transferred to d&b amplifiers. Serving as the central control point for any d&b Remote network, R1 can be operated from various locations including the control room or mix position. With a clear, logical layout, the R1 Remote control software supports efficient system planning and monitoring, enabling users to manage and oversee the full capabilities of the d&b system architecture.
- R1 Remote control software enables d&b devices to be remotely controlled, using both Ethernet and CAN-Bus
- optimized for use with touchscreen, mouse and keyboard
- runs on Microsoft Windows and macOS operating systems
- password protection is available to restrict access
-

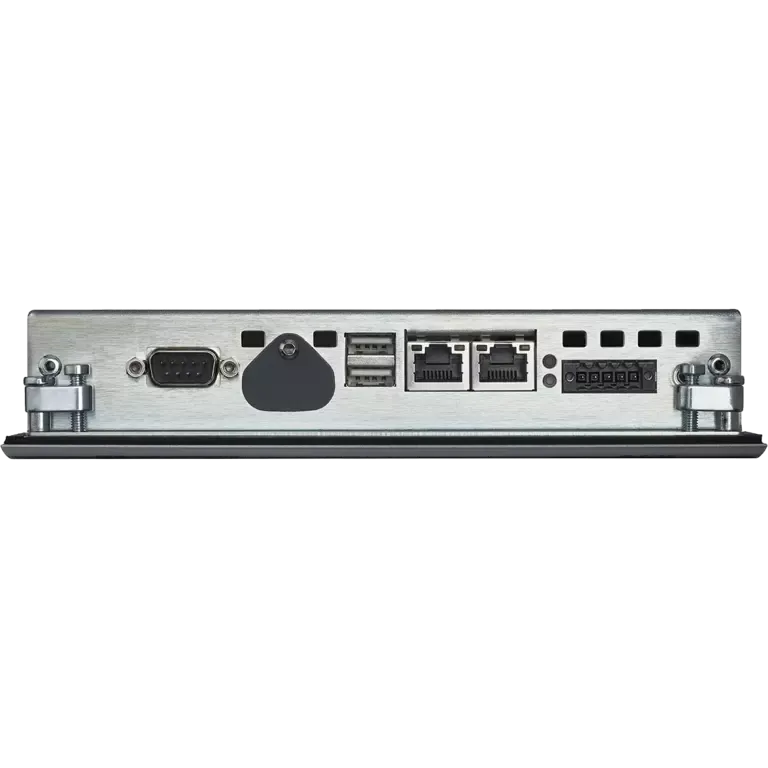

R90 Touchscreen Remote Control
The R90 Touchscreen remote control from d&b provides straightforward, centralised operation of d&b audio systems, making it suitable for users with varying levels of technical knowledge. This 7-inch panel PC, powered by a 1GHz ARM Cortex-A8 processor and based on Beckhoff architecture, enables direct access to essential functions such as power, mute, level control, grouping, and the recall of up to nine AmpPresets. Operating independently from the R1 Remote control software, the R90 reduces the risk of unintended changes to system configuration. Supporting up to 15 amplifiers without the need for custom protocol programming, the d&b R90 can also be accessed remotely via smartphones or tablets on the same network. Once initial setup is complete, routine system management can be performed without the need for technical staff. As part of the d&b system integration approach, the R90 enhances operational efficiency in permanent audio installations and complex sound environments.
Control panel
- Intuitive user interface for control of general functions of a d&b system
- Simple setup for system integrators, no additional code required
- Manage daily operation of a d&b system without technician
-

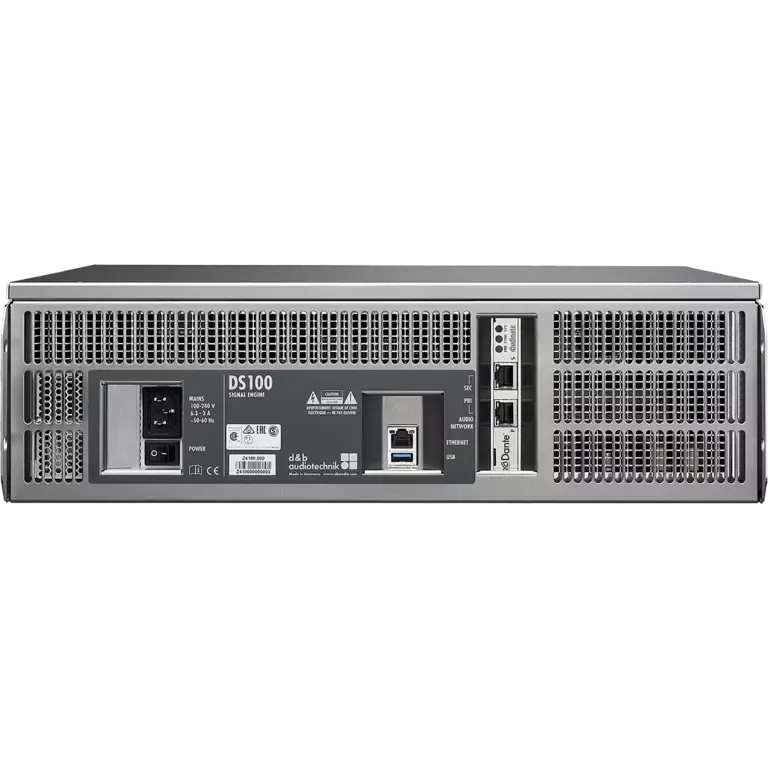

DS100 Signal Engine
The DS100 Signal Engine is a professional-grade DSP platform from d&b audiotechnik, designed for network-based audio signal management. Fully Dante-enabled, the DS100 Signal Engine integrates directly with the d&b R1 Remote control software, supporting established workflows for system configuration and operation. Users can create remote views for grouped parameter control and store complete system setups using snapshots. Enhanced capabilities within ArrayCalc and R1 streamline the implementation of matrix functions within d&b loudspeaker systems, from configuring the DS10 Network bridge to setting up Dante outputs for loudspeaker connectivity. The DS100 Signal Engine also supports full Open Sound Control (OSC) compatibility, enabling external control and automation across complex audio environments. By combining precise signal routing with centralised management, the DS100 Signal Engine delivers reliable and scalable audio processing for professional installations and live sound applications.
Network-driven and Dante-enabled DSP platform
- DSP platform for d&b Soundscape
- Audio matrix with scalable I/O options and Level and Delay at every crosspoint
- En-Scene software included
- Dante I/O
- Latency (Dante In to Dante Out): < 1.4 ms @ 48 kHz / < 1.6 ms @ 96 kHz
-

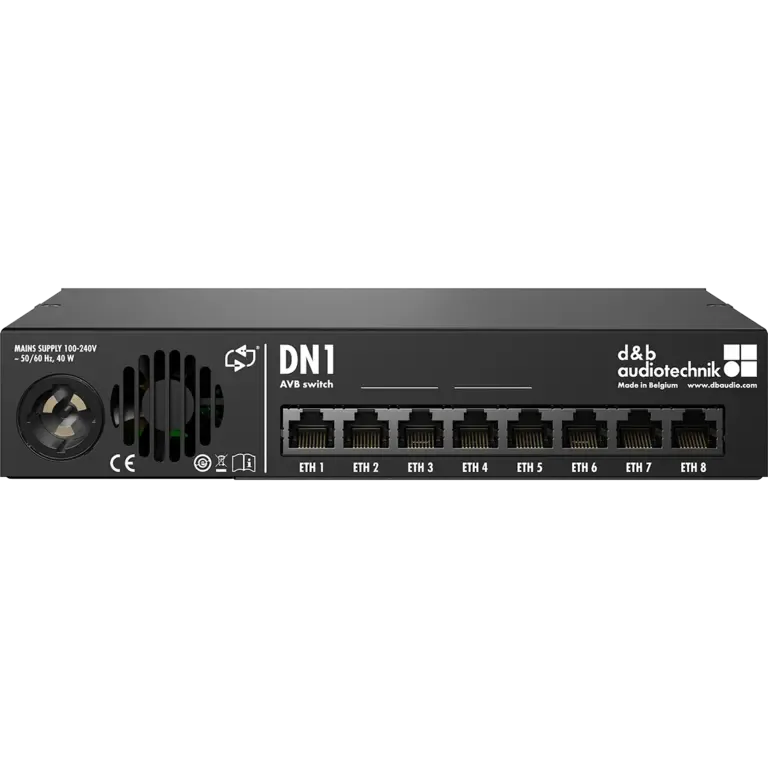

DN1 Ethernet Switch
The DN1 Ethernet switch is a key component within the d&b system network, designed to support Milan AVB-based infrastructures with high efficiency. Engineered specifically for professional audio networks, the DN1 switch is Avnu Alliance certified and enables concurrent support for Milan AVB, AES70 OCA, Dante, and standard IP protocols. Its plug-and-play operation eliminates the need for network configuration expertise, automatically recognising primary or secondary Milan streams on each port and identifying incorrect cabling. The DN1 Ethernet switch streamlines redundancy setup by dynamically adjusting its IP address according to network assignment. It offers eleven IEEE 802.1BA-compliant Ethernet ports with data rates up to 1 Gbit per second. Three ports on the front panel feature robust etherCON connectors, with two delivering 15 watts PoE to power compatible devices such as the d&b ArraySight. Housed in a durable 1 RU 9.5-inch chassis, the DN1 Ethernet switch allows dual-unit rack installation for compact redundancy solutions.
11-port Ethernet hardware device to support Milan™/AVB enabled LAN network communication
- Supporting Milan™/AVB, Dante®, AES67, AES70/OCA and standard IP traffic simultaneously
- Plug-and-play approach
- Monitoring and setting of IP address and remoteID using the R1 Remote control software
- Milan™/AVB primary / secondary network traffic detection and error indication
- Two Ethernet ports to connect and power PoE enabled devices
-
M4 Stage Monitor
The M4 stage monitor is a high-performance, two-way loudspeaker featuring a coaxial driver configuration with a 15-inch low-frequency unit and a 1.3-inch exit horn-loaded high-frequency driver, both utilising neodymium magnets. Designed for professional stage environments, the M4 offers precise sound coverage with a constant directivity dispersion of 50 degrees horizontal by 70 degrees vertical. When operated in an upright position, the M4 functions effectively as a PA loudspeaker, delivering a 70 by 50 degree dispersion suitable for a range of sound reinforcement applications. For fixed installations, the driver assembly’s dispersion can be rotated in 45 degree increments to suit specific acoustic requirements. Constructed from marine-grade plywood, the M4 enclosure includes integrated handles, an impact-resistant paint finish, M10 mounting points and a stand socket. A durable metal grille with acoustically transparent foam protects the front, while recessed runners on the base minimise wear and provide stability. The M4 can also be configured for two-way active operation.
2-way stage monitor
- Components 15″/1.3″
- Dispersion 50° x 70° rotatable
- SPLmax 140 dB
- Weight 20 kg / 44 lb
-

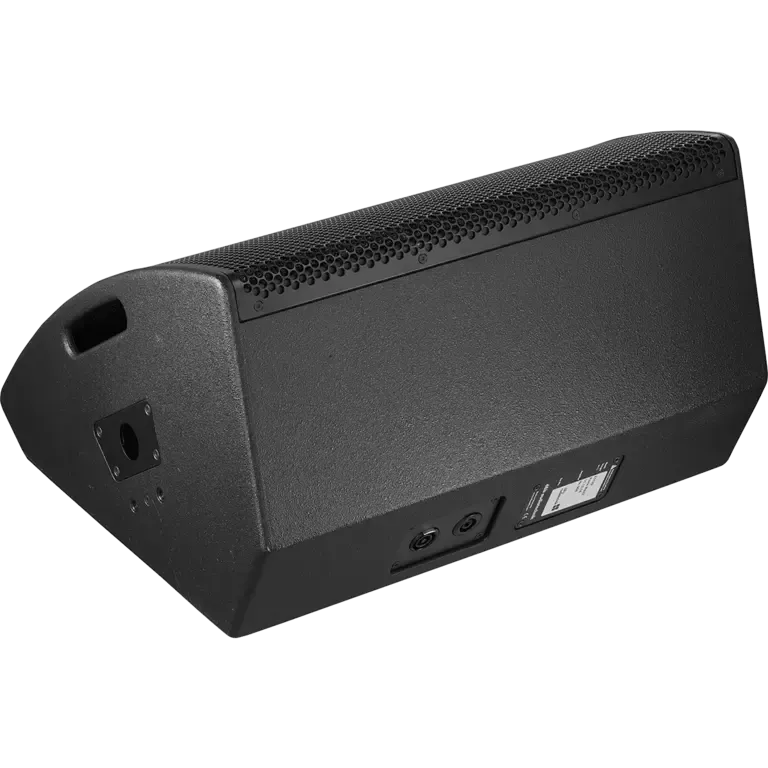

MAX2 Monitor
The MAX2 loudspeaker is a 2-way passive system featuring a 15-inch low-frequency driver and a coaxially mounted 1.4-inch high-frequency compression driver, delivering a 75-degree conical dispersion for consistent directivity. Designed for space efficiency, the coaxial configuration uses a single magnet assembly, enabling a low-profile cabinet suited to visually restricted environments. The MAX2 loudspeaker is highly versatile, supporting use as a stage monitor, a stand-alone full-range speaker, or as a drumfill when paired with d and b subwoofers. Its cabinet is built from marine-grade plywood and finished with an impact-resistant paint, offering durability for professional applications. The enclosure includes four M10 threaded inserts for bracket mounting, recessed grips for transport, and a robust metal grille with acoustically transparent backing for driver protection. A pole mount on the side panel and recessed runners on the bottom enhance handling and stability. The MAX2 loudspeaker is engineered for flexible deployment in professional audio settings.
2-way stage monitor
- Components 15″/1.4″
- Dispersion 75°
- SPLmax 135 dB
- Weight 23 kg / 50 lb
