Brand: d&b audiotechnik

  • E12 Loudspeaker

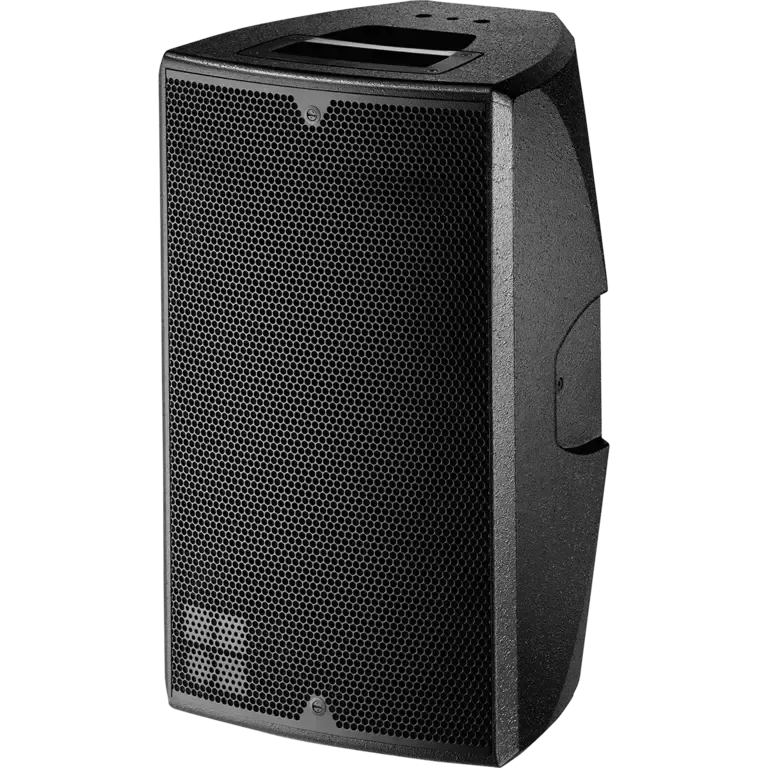

    E12 Loudspeaker

    The E12 and E12-D are versatile, high-performance 2-way loudspeakers designed for professional audio applications. Featuring an integrated coaxial driver, the E12 and E12-D deliver reliable full-range sound for both speech and music, whether used independently or as part of a distributed sound system. When paired with an E15X or B4 subwoofer, these loudspeakers provide extended low-frequency response suitable for high-output music playback. The enclosure supports vertical and horizontal positioning and functions effectively as a stage monitor. The E12 offers an 80 by 50 degree dispersion, while the E12-D provides a broader 110 by 50 degree coverage. Both models feature rotatable horns to accommodate alternative dispersion needs. Constructed from durable polyurethane integral hard foam with an impact-resistant painted finish, each cabinet includes integrated handles and a concealed stand socket. The E12 and E12-D are also offered in Special Colour and Weather Resistant variants, the latter rated IP54 for use in varied environmental conditions.

    High performance 2-way coaxial loudspeaker

    • Components 12″/1.3″
    • Dispersion 80° x 50° rotatable
    • SPLmax 134 dB
    • Weight 16 kg / 35 lb
  • D25 amplifier

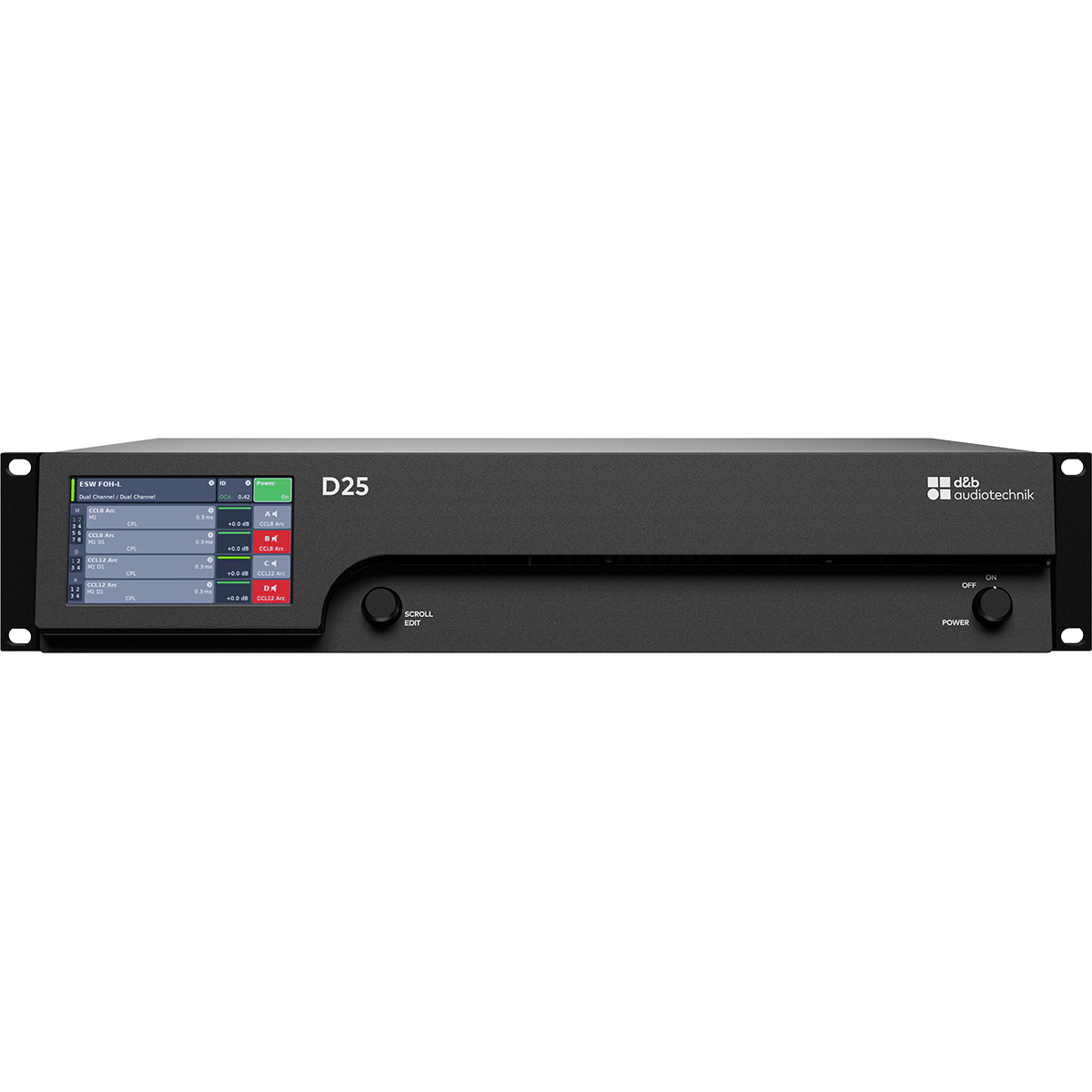

    D25 amplifier

    The d&b D25 amplifier is a 2 RU device designed to deliver optimised power output for compact, high-efficiency d&b mobile loudspeaker systems. Despite its size, the d&b D25 offers the same advanced DSP capabilities found in larger d&b amplifiers. Supported loudspeaker models are detailed in the firmware release notes. With a dynamic range of 112 dB (unweighted), the d&b D25 includes robust loudspeaker management, configurable filtering, user-defined equalisation, and adjustable delay. Energy-saving functions, efficient power handling, and automatic wake-up help reduce operational costs and support sustainability goals. The amplifier supports up to 16 audio input channels, comprising eight Milan inputs, four analogue connections, and four AES3 digital inputs. A switch mode power supply with automatic voltage adaptation and active Power Factor Correction ensures reliable operation under varied mains conditions. The d&b D25 integrates with the d&b Remote network via Ethernet using AES70 OCA, accessible through its web interface or the d&b R1 Remote control software.

    Mobile specific four channel amplifier

    • Maximum output power 4 x 1800/900 W into 4/8 Ω
    • Maximum output voltage/current 120 Vpeak / 35 Apeak
    • Operating and Monitoring display, colour TFT touchscreen, 4.3″ / 480 x 272 pixel
    • Milan-enabled

  • V Subwoofer

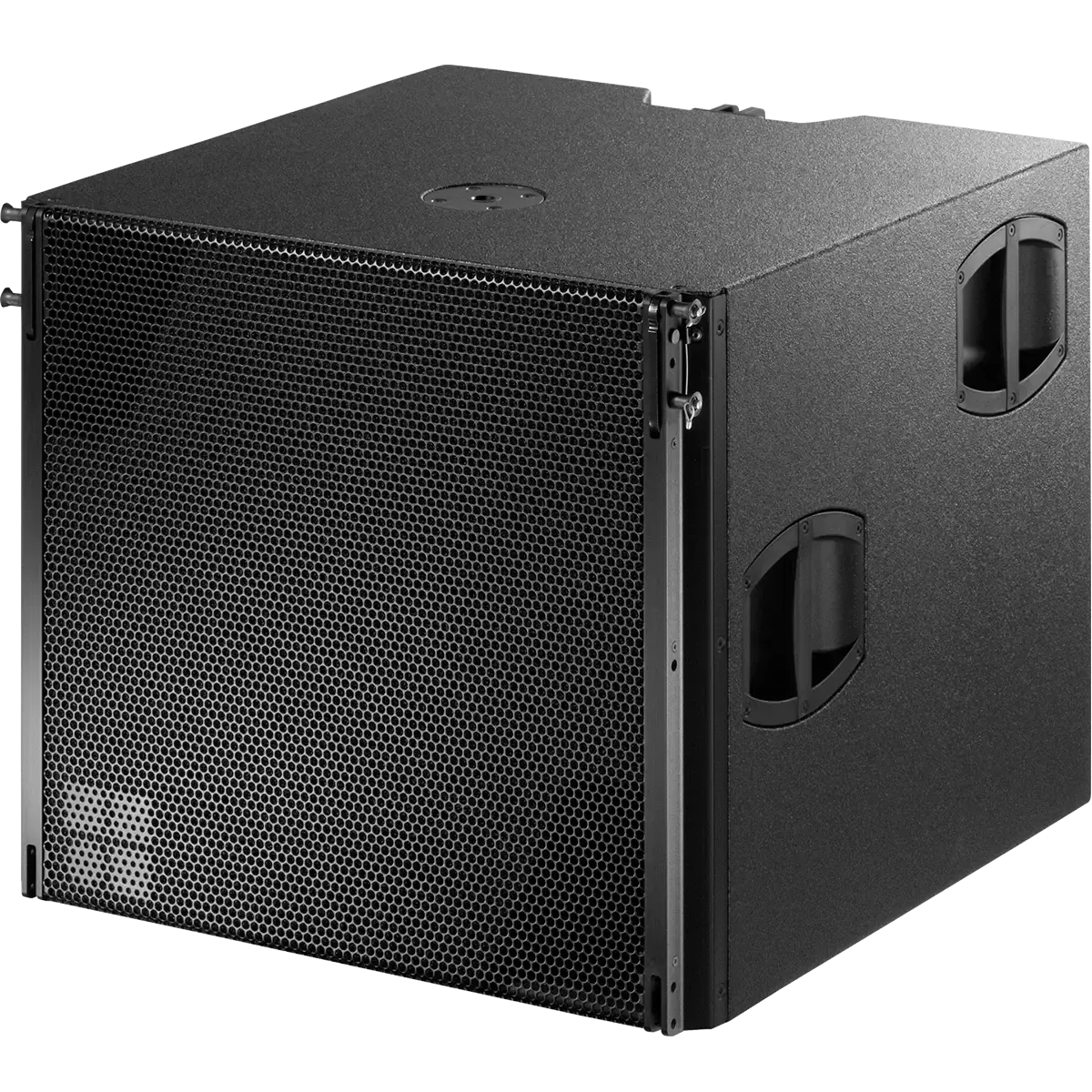

    V Subwoofer

    The V-SUB is a high-performance cardioid subwoofer engineered for professional audio applications, powered by a single amplifier channel. Designed to complement V8 and V12 loudspeakers, the V-SUB can be deployed in flown or ground-stacked configurations, either as part of an array or as a separate column. It features integrated rigging components and shares both acoustic and visual characteristics with the ground-stacked V-GSUB. The enclosure includes two neodymium drivers: a forward-facing 18-inch driver in a bass-reflex design and a rear-radiating 12-inch driver housed in a two-chamber bandpass system. This configuration produces a cardioid dispersion pattern that significantly reduces rearward low-frequency output, minimising reverberation and enhancing clarity. Constructed from marine-grade plywood, the V-SUB is coated with a durable Polyurea Cabinet Protection finish. A robust metal grille with acoustically transparent foam protects the front, while side handles and a top-mounted M20 stand flange support flexible handling and deployment.

    High performance flyable cardioid subwoofer

    • Components 18″/12″
    • Dispersion Cardioid
    • SPLmax 137 dB
    • Weight 64 kg / 141 lb

  • V-GSUB Subwoofer

    The V-GSUB cardioid subwoofer is a high-performance, actively powered unit designed for ground stack use only. Powered by a single amplifier channel, the V-GSUB shares the same acoustic and visual design as the V-SUB but without integrated rigging hardware. It incorporates two neodymium long excursion drivers: an 18-inch front-facing driver in a bass reflex configuration and a 12-inch rear-facing driver in a two-chamber bandpass design. This configuration delivers a cardioid dispersion pattern that significantly reduces rearward low-frequency energy, enhancing clarity and minimising reverberation. The top panel of the V-GSUB includes a recessed footprint that securely accommodates a V7P or V10P loudspeaker, preventing cabinet movement during stacking. The enclosure is built from durable marine-grade plywood and finished with a weather-resistant PCP coating. A rigid metal grille with acoustically transparent foam protects the front, while the cabinet also features dual side handles, protective runners, and a high stand flange integrated into the top panel.

    High performance cardioid subwoofer

    • Components 18″/12″
    • Dispersion Cardioid
    • SPLmax 137 dB
    • Weight 61 kg / 135 lb

  • Ti Subwoofer

    The Ti SUB is the installation-specific variant of the T SUB, designed with modified mounting hardware and cabinet features to suit fixed applications. It enhances the low-frequency performance of Ti10L and Ti10P loudspeakers across a range of system setups. This subwoofer utilises an active bass-reflex design, incorporating a long excursion 15-inch neodymium driver. Rigging hardware is integrated into the enclosure, including front-mounted side links and a central rear splay link, allowing secure mechanical connection between units. The Ti SUB also supports ground-stacked configurations, serving as a base for Ti10 loudspeakers. Constructed from marine-grade plywood, the cabinet is finished with a durable, impact-resistant paint. A robust metal grille with acoustic foam protects the front of the enclosure. The rear panel features two NL4 connectors wired in parallel for flexible signal routing. The Ti SUB is available in Special Colour and Weather Resistant versions, making it adaptable to a range of installation environments.

    Installation specific compact flyable subwoofer

    • Components 15″
    • Dispersion Omni directional
    • SPLmax 130 dB
    • Weight 17 kg / 37 lb

  • T Subwoofer

    The T-SUB is a bass-reflex loudspeaker specifically engineered for high-performance low-frequency reinforcement, featuring a 15-inch high-excursion driver. When powered by the D12 amplifier, the T-SUB supports d&b SenseDrive technology for enhanced driver control. Designed to extend the low-frequency response of the T10 loudspeaker, the T-SUB can be deployed in multiple configurations, including ground-stacked or flown. It integrates directly above T10 arrays or operates as a separate flown column. Mechanical connections include sliding rigging links on both cabinet sides and a rear splay link for secure array assembly. The T-SUB enclosure is built from marine-grade plywood and finished with an impact-resistant paint, while a top-mounted handle ensures ease of handling. The loudspeaker’s front face is shielded by a durable metal grille backed with acoustically transparent foam. Two NL4 connectors, wired in parallel, are positioned on the rear panel, supporting flexible signal routing in professional audio environment.

    Compact flyable subwoofer

    • Components 15″
    • Dispersion Omni directional
    • SPLmax 130 dB
    • Weight 17 kg / 37

  • E8 Loudspeaker

    The E8 loudspeaker is a versatile, high-performance 2-way solution designed around an integrated coaxial driver. Suitable for both speech and music reinforcement, the E8 functions effectively as a stand-alone full-range unit or as part of a distributed audio system. When paired with the E12X subwoofer, in either passive or active configuration, or other compatible E-Series subwoofers, the E8 delivers enhanced output for music playback. Its enclosure supports both vertical and horizontal positioning, making it adaptable for front-of-house or stage monitoring use. The horn offers a 90 by 50 degree dispersion pattern, which can be rotated to 50 by 90 degrees for flexible coverage. Constructed from robust polyurethane integral hard foam and finished with an impact-resistant coating, the E8 includes a handle and stand socket. Available in Special Colour and Weather Resistant variants, the latter provides IP54-rated protection for reliable operation in varying environmental conditions.

    2-way compact coaxial loudspeaker

    • Components 8″/1″
    • Dispersion 90° x 50° rotatable
    • SPLmax 129 dB
    • Weight 7.3 kg / 16.1 lb

  • SL Subwoofer

    Large format flyable cardioid subwoofer

    • Components 3 x 21″
    • Dispersion Cardioid
    • SPLmax 144 dB
    • Weight 138 kg / 304 lb

  • E6 Loudspeaker

    The E6 loudspeaker is a compact, high-performance solution designed for versatile professional audio applications. Featuring an integrated coaxial driver, the E6 delivers precise sound dispersion with a 100 by 55 degree horn pattern that can be rotated 90 degrees without tools, allowing vertical or horizontal installation. Its unique cabinet structure and comprehensive accessory range support flexible deployment, including use as a stage monitor. Engineered for compatibility with the E8 and E12 models, the E6 offers consistent audio performance across the E-Series. When paired with the E12X subwoofer or any E-Series subwoofer, it supports full-range music playback at high output levels. The robust cabinet features a durable paint finish with an integrated handle and is available in Special Colour and Weather Resistant versions. The Weather Resistant model meets IP54 standards, ensuring reliable performance in variable environmental conditions, with protective metal plates covering the handle recess and stand socket for enhanced durability.

    2-way compact coaxial loudspeaker

    • Components 6.5″/1″
    • Dispersion 100° x 55° rotatable
    • SPLmax 123 dB
    • Weight 5 kg / 11 lb

  • E4 Loudspeaker

    The E4 is a compact, lightweight passive loudspeaker designed for high-performance two-way audio reproduction. Featuring a neodymium low-frequency driver paired with a coaxially mounted dome tweeter, the E4 delivers consistent, symmetrical dispersion across both horizontal and vertical planes. Its versatile cabinet design supports flexible installation in either orientation, making it suitable for mobile near-field applications such as speech and music reinforcement in theatres, conference venues, broadcast environments, and industrial presentations. The E4 loudspeaker is also effective in surround sound, delay, and fill roles. It can operate independently or be complemented by E-Series subwoofers for enhanced low-frequency output. Constructed from durable injection-moulded material, the sealed enclosure is finished in impact-resistant black paint and built to withstand outdoor use as standard. For projects requiring aesthetic integration, a Special Colour variant of the E4 loudspeaker is available to meet specific visual requirements.

    2-way compact coaxial loudspeaker

    • Components  4″/0.75″
    • Dispersion 100° conical
    • SPLmax 115 dB
    • Weight 1.1 kg / 2.4 lb
