Brand: d&b audiotechnik

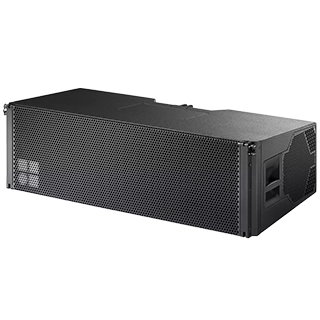

The GSL8 is a high-performance line array loudspeaker engineered for large-scale sound reinforcement applications. Designed for vertical array configurations, up to 24 GSL8 modules can be flown in a single column, delivering a consistent 80° horizontal dispersion pattern with precise directivity.

Each GSL8 unit features a robust acoustic design, integrating two 14-inch neodymium low-frequency drivers mounted on the front and two 10-inch neodymium low-frequency drivers positioned on the sides. The mid and high-frequency section includes a coaxial arrangement, comprising a 10-inch driver loaded onto a dedicated MF horn, along with three 1.4-inch exit compression drivers (each with a 3.4-inch voice coil), coupled to a proprietary wave shaping device for optimal coverage and tonal balance.

The GSL8 utilises the SL-Series advanced flying system, incorporating patented rigging technology that supports both compression and tension modes. Adjustable splay angles between cabinets range from 0° to 7° in 1° increments, allowing for precise array curvature and coverage control.

Large-format 3-way line array loudspeaker

Driver Configuration:
Low Frequency: 2 x 14-inch drivers plus 2 x 10-inch drivers
Mid Frequency: 1 x 10-inch driver
High Frequency: 3 compression drivers with 1.4-inch exits and 3.4-inch voice coils

Horizontal Coverage: 80 degrees
Maximum Sound Pressure Level: 150 dB
Weight: 80 kg (176 lb)

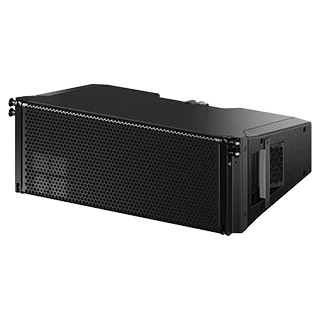

The CCL12 is a precision-engineered cardioid line array loudspeaker, specifically developed for small to mid-sized sound reinforcement applications. Its advanced acoustic design ensures controlled directivity across the full frequency spectrum, from 62 Hz up to 18 kHz and beyond.

Thanks to the strategic placement and digital processing of its forward- and side-firing low-frequency drivers, the CCL12 maintains consistent dispersion behaviour throughout its entire bandwidth.

Constructed as a 2-way passive system, the CCL12 features two 7-inch neodymium low-frequency drivers at the front, complemented by two 5-inch neodymium side-firing drivers. High frequencies are handled by a pair of 1.75-inch exit compression drivers, mounted on a dedicated wave-shaping element. These components work in unison to produce cylindrical wavefronts that integrate seamlessly when multiple enclosures are arrayed.

When deployed using the dedicated CCL flying frame, up to 24 CCL12 cabinets can be suspended in vertical arrays. This setup delivers a uniform 120° horizontal dispersion, ensuring consistent coverage across audience areas. Adjustable splay angles between cabinets range from 0° to 14°, in precise 1° steps, allowing for flexible configuration to suit a variety of venue requirements.

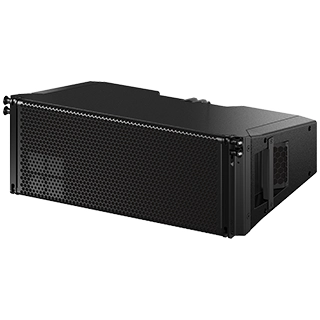

The CCL8 is a space-efficient cardioid line array loudspeaker designed to deliver precise audio coverage for small to mid-sized sound reinforcement applications.

Engineered for optimal sound directionality, the CCL8 utilises a strategic combination of forward- and side-firing low-frequency drivers, coupled with dedicated signal processing. This ensures consistent directivity across the full operational frequency range.

With a frequency response spanning from 62 Hz up to beyond 18 kHz, the CCL8 offers full-range performance suitable for demanding environments.

When paired with the dedicated CCL Flying Frame, users can suspend up to 24 CCL8 units in a vertical array. This configuration provides a stable 80° horizontal dispersion, maintaining constant directivity throughout.
