Brand: d&b audiotechnik

  • M6 Stage Monitors

    The M6 is a professional-grade 2-way stage monitor engineered for high performance, featuring a coaxial design with a 12-inch low-frequency driver and a 1.3-inch high-frequency horn-loaded exit, both utilising neodymium magnet technology. The M6 offers a controlled 50 by 80 degree horizontal and vertical dispersion, delivering precise on-stage sound coverage. Designed for flexible use, the M6 can operate in 2-way active mode and functions effectively as a compact PA loudspeaker when positioned upright, providing an 80 by 50 degree dispersion pattern suitable for various sound reinforcement scenarios. For fixed installations, the driver assembly allows for rotation to adapt the dispersion angle. The M6 cabinet is built from durable marine-grade plywood with an impact-resistant finish, integrated handles, M10 mounting points, and a pole socket. A robust metal grille with acoustic foam protects the front, while recessed runners on the base minimise wear and movement during use.

    2-way stage monitor

    • Components 12″/1.3″
    • Dispersion 50° x 80° rotatable
    • SPLmax 138 dB
    • Weight 16 kg / 35 lb

  • M2 Stage Monitor

    The M2 is a high-performance 2-way stage monitor engineered for professional live sound applications, delivering a peak sound pressure level of 143 dB. Its compact, low-profile enclosure supports a 45 by 60 degree constant directivity above 600 Hz, significantly improving feedback rejection and onstage intelligibility. Designed with a 40 degree baffle angle relative to the floor, the M2 provides consistent coverage from directly above the monitor to well upstage, creating an effective listening zone for performers. The M2 offers exceptional vocal clarity, balanced tonality, and reliable performance in demanding environments. Constructed from durable marine-grade plywood, the cabinet includes integrated handles and a robust, impact-resistant paint finish. For flexible deployment, each side of the M2 features two mounting points compatible with ball-lock shackle pins, supporting a range of rigging options. The M2 stage monitor combines precision acoustic control with rugged build quality, meeting the performance and installation needs of professional audio environments.

    High performance 2-way stage monitor

    • Components 2 x 12″/1.4″
    • Dispersion 45° x 60°
    • SPLmax 143 dB
    • Weight 38 kg / 84 lb

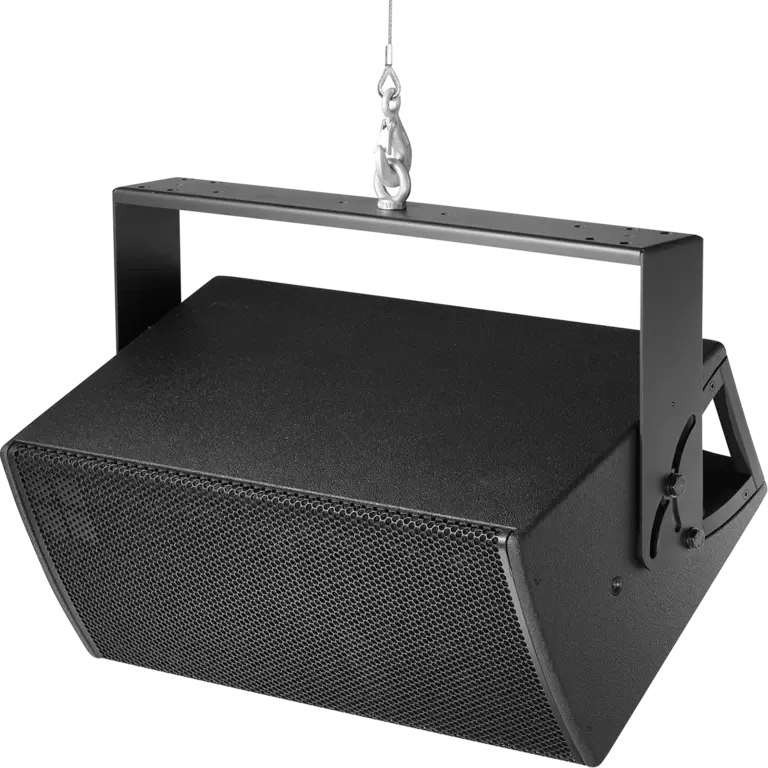

  • Y10P Loudspeaker

    Y10P Loudspeaker

    The Y10P loudspeaker is a compact, passive, two-way point source solution featuring dual 8-inch drivers configured in a dipole layout and a 1.4-inch compression driver mounted on a rotatable constant directivity horn. Engineered for precise audio performance, the Y10P delivers extended low-frequency output and full bandwidth capability through its advanced bass-reflex port design and optimised horn geometry. It offers 110 degrees of horizontal dispersion controlled down to 500 Hz, with a vertical coverage of 40 degrees. The horn can be rotated 90 degrees for horizontal installation, making the Y10P suitable for flexible configurations, whether deployed as a standalone full-range speaker or integrated within Y-Series systems in flown or ground-stacked setups. Constructed from durable marine-grade plywood, the cabinet is coated with a protective polyurea finish. A robust metal grille and acoustically transparent foam safeguard the front, while integrated handles and M10 rigging points facilitate versatile mounting and installation.

    High performance 2-way passive point source loudspeaker

    • Components 2 x 8″/1.4″
    • Dispersion 110° x 40°
    • SPLmax 136 dB
    • Weight 18 kg / 40 lb

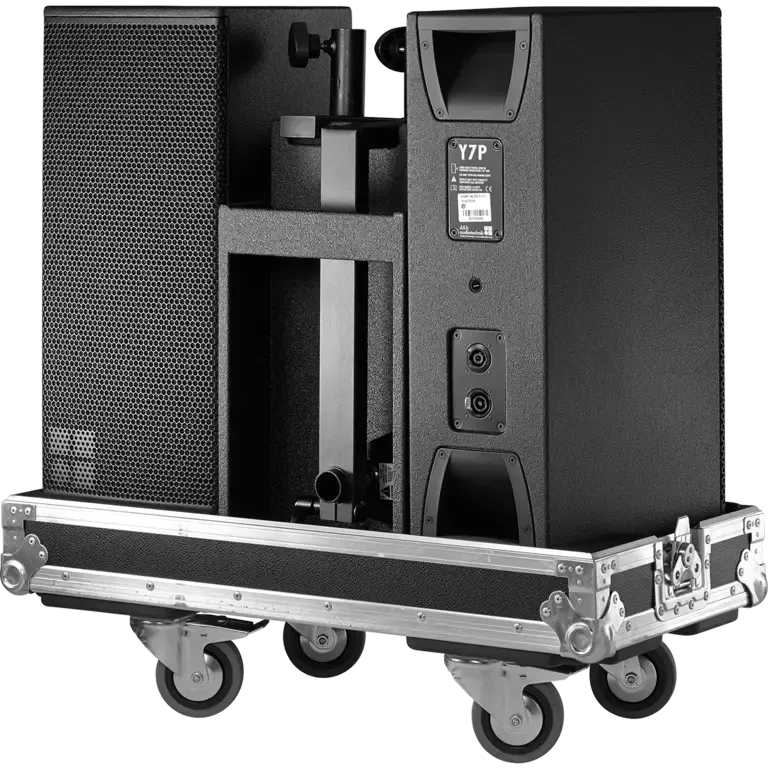

  • Y7P Loudspeaker

    Y7P Loudspeaker

    The Y7P loudspeaker is a compact, passive two-way system featuring dual 8-inch drivers in a dipole layout, complemented by a 1.4-inch compression driver mounted on a rotatable constant directivity horn. Engineered for precise dispersion control, the Y7P delivers 75 degrees of horizontal coverage maintained down to 500 hertz, along with a fixed 40-degree vertical pattern. The horn can be rotated 90 degrees to accommodate horizontal placement. Advanced bass-reflex porting and refined horn geometry enable full-range frequency response with extended low-frequency performance. Constructed from marine-grade plywood, the Y7P is coated with durable Polyurea Cabinet Protection and shielded by a robust metal grille with acoustically transparent backing. Designed for versatile deployment, it supports both standalone operation and integration with other Y-Series models in flown or ground-stacked configurations. The enclosure includes integrated handles and multiple M10 threaded inserts to support a wide range of d&b mounting solutions, including compatibility with 8mm load pins.

    High performance 2-way passive point source loudspeaker

    • Components 2 x 8″/1.4″
    • Dispersion 75° x 40°
    • SPLmax 137 dB
    • Weight 18 kg / 40 lb

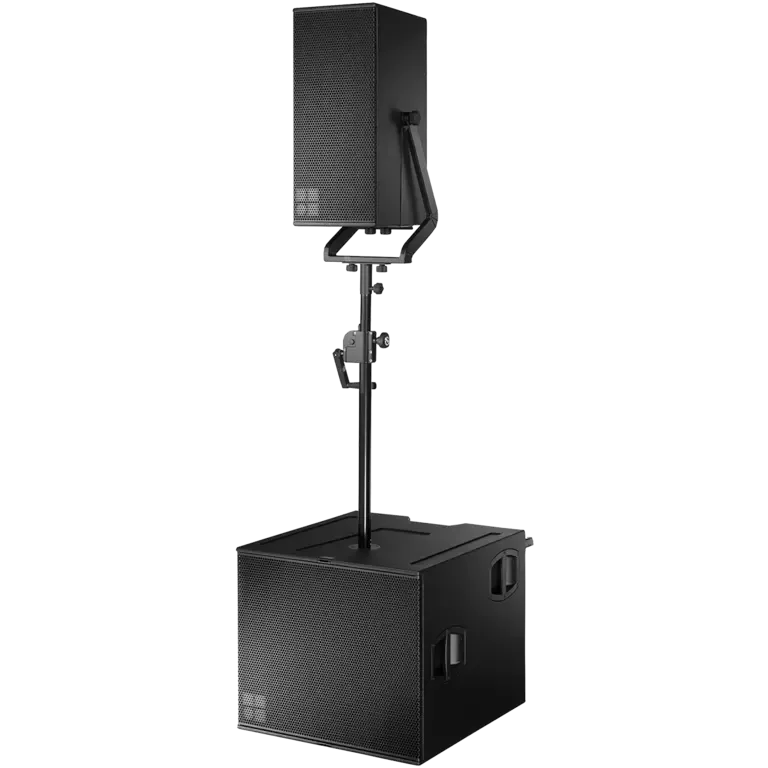

  • V10P Loudspeaker

    V10P Loudspeaker

    The d&b audiotechnik V10P loudspeaker is a high-performance, 3-way passive system engineered for precise and balanced sound reproduction. It features two 10-inch low-frequency drivers in a dipole configuration, complemented by a horn-loaded 8-inch midrange driver and a 1.4-inch compression driver, mounted on a rotatable constant directivity horn. This central 8-inch driver delivers enhanced vocal clarity due to its efficient horn design. The advanced bass-reflex enclosure supports extended low-frequency response across the full bandwidth. With symmetrical driver placement along the cabinet’s central axis, the V10P achieves uniform dispersion, offering 110 degrees horizontal and 40 degrees vertical coverage. The horn can be rotated for horizontal setups. Constructed from durable marine-grade plywood and finished with weather-resistant Polyurea coating, the V10P is built for versatility in both ground-stacked and flown configurations. The cabinet includes ergonomic handles and multiple M10 threaded inserts, allowing secure integration with d&b rigging solutions for flexible installation.

    High performance 3-way passive point source loudspeaker

    • Components 2 x 10″/8″/1.4″
    • Dispersion 110° x 40°
    • SPLmax 139 dB
    • Weight 33 kg / 75 lb

  • V7P Loudspeaker

    The d&b V7P loudspeaker is a three-way passive point source system engineered for precision and versatility in professional audio applications. It features two 10-inch low-frequency drivers in a dipole configuration, an 8-inch horn-loaded midrange driver, and a 1.4-inch compression driver on a rotatable constant directivity horn. The midrange horn design delivers outstanding sensitivity, ensuring clear and detailed vocal reproduction. With advanced bass-reflex and venting architecture, the d&b V7P offers extended low-frequency performance across the full bandwidth. All components are symmetrically aligned along the cabinet’s central axis, maintaining consistent dispersion characteristics. The dipole arrangement supports broadband directional control down to approximately 350 Hz within the horizontal plane. The d&b V7P provides 75 degrees of horizontal and 40 degrees of vertical coverage, with horn rotation allowing flexible installation. Constructed from marine-grade plywood with a weather-resistant polyurea finish, the cabinet includes integrated handles, rigging points, and additional M10 mounting options for secure deployment.

    High performance 3-way passive point source loudspeaker

    • Components 2 x 10″/8″/1.4″
    • Dispersion 75° x 40°
    • SPLmax 140 dB
    • Weight 33 kg / 75 lb

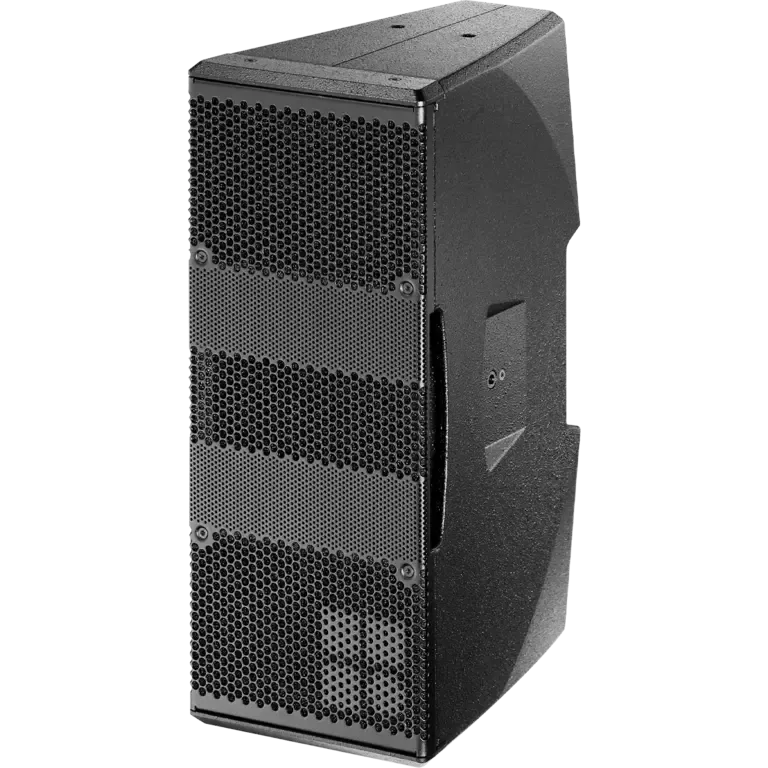

  • Ti10P Loudspeaker

    Ti10P Loudspeaker

    The Ti10P loudspeaker is the installation-specific variant of the T10, designed for fixed applications where point source performance is required. Both the Ti10P and T10 share identical acoustic design, differing only in their mounting configurations. This passive two-way speaker features dual 6.5-inch neodymium low-frequency drivers and a 1.4-inch exit high-frequency compression driver, housed in a compact enclosure suitable for vertical or horizontal mounting. A rotatable horn with an integrated acoustic lens allows tool-free adjustment via side apertures, enabling dispersion of 90 degrees horizontally down to 600 Hz or 105 degrees in the horizontal orientation. When positioned vertically, the wavefront is shaped to achieve a 90 by 35 degree pattern. The cabinet is constructed from durable polyurethane hard foam and includes threaded inserts for permanent installations. The front is protected by a metal grille with acoustic foam backing, while the rear panel features two parallel-wired NL4 connectors. The Ti10P loudspeaker is also offered in Special Colour and Weather Resistant versions with IP55 certification.

    Installation specific 2-way point source loudspeaker

    • Components 2 x 6.5″/1.4″
    • Dispersion 90° x 35°
    • SPLmax 130 dB
    • Weight 10.5 kg / 23 lb

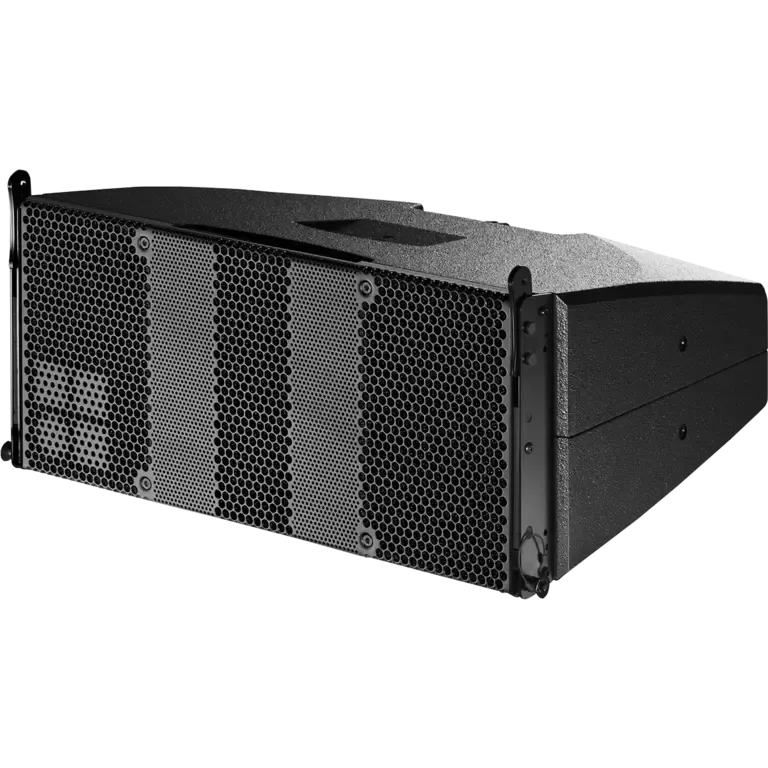

  • T10 Loudspeaker

    T10 Loudspeaker

    The T10 is a versatile passive two-way loudspeaker featuring a dipolar configuration with two 6.5-inch drivers and a 1.4-inch high-frequency compression driver, supported by an integrated passive crossover. Designed for flexible deployment, the T10 functions effectively as both a line array module and a high-directivity point source system. Its HF driver is mounted on a specialised waveguide horn that ensures vertical line source dispersion and maintains a consistent 90-degree horizontal coverage down to approximately 600 Hz. An acoustic lens positioned in front of the horn extends horizontal dispersion to 105 degrees. When the horn is rotated 90 degrees, the T10 transforms into a point source loudspeaker with a horizontal dispersion of 90 degrees and a vertical coverage of 35 degrees. The T10 enclosure is manufactured from polyurethane integral hard foam with a durable finish and built-in rigging hardware. A robust metal grille with acoustically transparent backing protects the front, and dual NL4 connectors are located on the rear.

    2-way loudspeaker with rotatable horn for point and line source operation

    • Components 2 x 6.5″/1.4″
    • Dispersion 90° x 35° / 105°
    • SPLmax 130 / 132 dB
    • Weight 11 kg / 24 lb

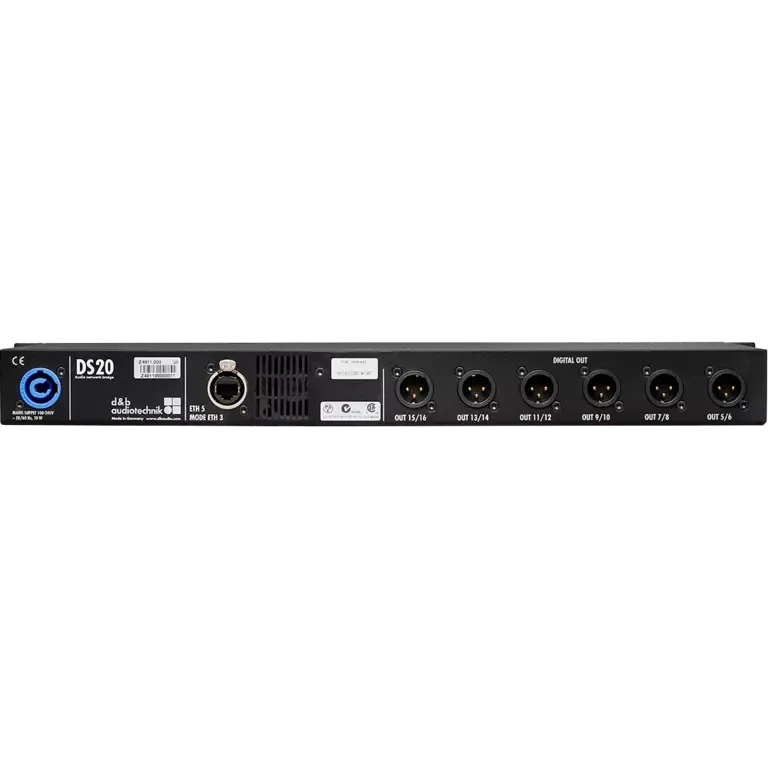

  • DS20 Audio Network Bridge

    DS20 Audio Network Bridge

    The DS20 Audio Network Bridge serves as a key interface between Milan audio networks and AES3 digital audio signals, while also enabling the distribution of Ethernet-based control data. Housed in a 1 RU chassis, the DS20 integrates into the d&b system architecture ahead of the amplifiers in the signal path, supporting both touring and fixed installations. It transmits metadata such as Milan channel labels and cable configuration via the AES3 stream directly to d&b four channel amplifiers. Alongside Milan-to-AES3 network bridging, the DS20 Audio Network Bridge offers four digital AES3 input channels for additional sources, including signals from a Front of House console. Equipped with a fully AVB-compliant five-port switch, the DS20 supports primary and redundant Milan networks while providing connectivity for remote control via the R1 software using the OCA protocol. Its front panel layout aligns with d&b Touring rack systems, and its wide-range power supply includes overvoltage protection up to 400 volts.

    Interface between d&b amplifiers and the Milan audio transport protocol

    • 16 AES3 digital output channels
    • 4 AES3 digital input channels
    • Integrated fully AVB-enabled 5-port network switch

  • E12-D Loudspeaker

    The E12 and E12-D are advanced two-way loudspeakers designed for high-performance speech and music reinforcement. Featuring a coaxial driver, both models deliver consistent audio dispersion and can operate as stand-alone full-range systems or as part of larger distributed sound setups. When paired with the E15X or B4 subwoofer, the E12 and E12-D provide enhanced low-frequency output suitable for demanding music playback. The enclosure supports both vertical and horizontal placement, including use as a stage monitor. The E12 offers an 80 by 50 degree dispersion, while the E12-D provides a wider 110 by 50 degree coverage. Horns on both models can be rotated to adjust the horizontal and vertical dispersion angles. Constructed from durable polyurethane hard foam with an impact-resistant finish, each cabinet includes integrated handles and a concealed stand mount. The E12 and E12-D are available in Special Colour and Weather Resistant versions, with the latter achieving an IP54 rating for reliable performance in variable outdoor conditions.

    High performance 2-way coaxial loudspeaker with wide dispersion

    • Components 12″/1.3″
    • Dispersion 110° x 50° rotatable
    • SPLmax 133 dB
    • Weight 16 kg / 35 lb
