Brand: FBT

The VERTUS MLA 608A is an active mixed-control line array speaker system that integrates precise digital signal processing with individual amplification channels for each transducer. Each waveguide is adjusted using eight hybrid stepper motors, offering 0.01° resolution across a horizontal range of ±35°, enabling adaptable dispersion patterns. System configuration and control are managed via an RS-485 network connection using a PC and dedicated software, which allows for environment simulation, pattern selection, and parameter transmission. Autoplay routines support automatic setup, while manual adjustments can be made directly on the unit using three rear-panel controls. The modular design accommodates up to two MLA801A and three MLA608A units, delivering up to 4000W and extending frequency control to 100 Hz. For fixed installations, mounting bars are included, with optional accessories for live use with FBT MITUS subwoofers. The VERTUS MLA 608A provides precise vertical beam control, making it well suited for challenging acoustic environments and large public or performance spaces.

The VERTUS CLA 604A Column Active Line Array is a high-performance speaker system designed for demanding live sound applications. Housed in a robust extruded aluminium enclosure, the VERTUS CLA 604A integrates six 4-inch custom woofers and four 1-inch dome tweeters, each paired with precision wave guides. It features an internal Class D amplifier delivering 400 watts to the woofers and 100 watts to the tweeters, supported by a switch-mode power supply and DSP with four EQ presets. This configuration ensures powerful output and consistent audio quality across a wide frequency range. The CLA 604A is engineered for long-throw projection and uniform sound coverage, while maintaining a compact form factor. A secure latching system enables two CLA 604A units to be combined into a single column, enhancing sound pressure levels and low-frequency control. Its lightweight design and refined appearance make the VERTUS CLA 604A ideal for professional installations where performance and discretion are essential.

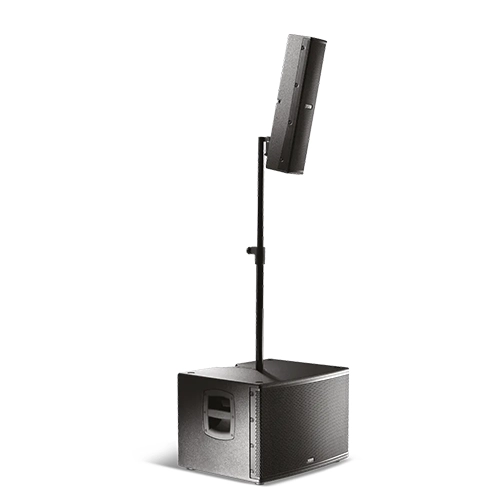

The VERTUS CLA 406.2A is a bi-amplified, active column line array designed for professional sound reinforcement. It features four 165mm custom-designed woofers with 38mm voice coils and a neodymium B&C high-frequency compression driver with a 36mm throat and 64mm coil, delivering precise and consistent performance. The integrated FBT waveguide provides a controlled 100-degree horizontal by 25-degree vertical dispersion. The system operates within a frequency range of 65Hz to 20kHz and includes a Class-D amplifier supplying 600Wrms to the low-frequency drivers and 300Wrms to the high-frequency section. An onboard DSP offers eight equalisation presets. The VERTUS CLA 406.2A cabinet is built from 12mm birch plywood with protective finishes and features integrated mounting points for flexible installation options, including stand mounting and array configurations with CLA 206A units. Designed for both point source and clustered setups, the enclosure supports precise vertical alignment with adjustable angles for optimal coverage.

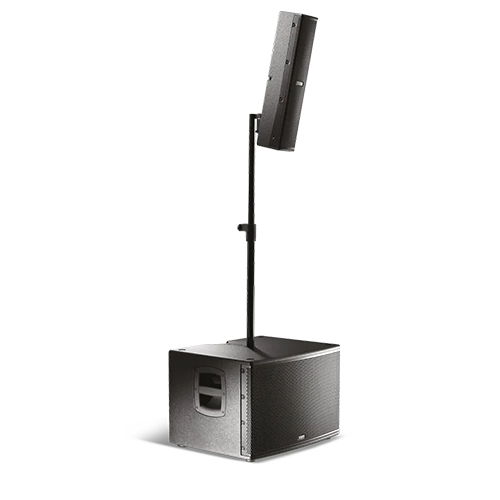

The VERTUS CLA 206A is a compact active column line array speaker, delivering 600W for low frequencies and 300W for high frequencies via Class-D amplification. Designed with two 6.5-inch custom woofers and a B&C compression driver featuring a 1.4-inch throat and 2.5-inch voice coil, the VERTUS CLA 206A ensures consistent audio performance with a frequency response from 65Hz to 20kHz. The integrated DSP includes eight EQ presets, while the large-format waveguide provides a horizontal dispersion of 100 degrees and vertical coverage of 25 degrees. Constructed from 12mm birch plywood with protective varnish and anti-slip features, it is suitable for both portable and installed applications. The VERTUS CLA 206A can operate independently, in clusters, or as a down-fill component alongside the CLA 406A. It features PowerCON connectors, multiple rigging points, a 35mm pole socket, and angled top design to support vertical dispersion adjustments, enhancing system flexibility across various acoustic environments.

The QA 108A Precision Coverage Vertical Active Array is a compact, high-performance loudspeaker system engineered for consistent vertical sound distribution. It features a 200mm (8-inch) B&C neodymium woofer with a 2-inch voice coil and a 150mm (6-inch) neodymium pleated diaphragm tweeter, integrated with a cylindrical waveguide offering 10 degrees vertical by 100 degrees horizontal dispersion. With a total output of 500 watts RMS (400 watts for LF and 100 watts for HF), the QA 108A delivers a maximum sound pressure level of 131dB. Its onboard Class D amplifier includes a switch-mode power supply and DSP with four configuration presets, enabling flexible array setups. The control panel provides XLR input and loop output, volume, EQ selection, HP filter, and LED indicators. Housed in a robust 12mm Baltic birch enclosure with a 10-degree trapezoidal angle, it includes Powercon connectors and integrated aluminium rigging hardware, adjustable in one-degree increments for precise deployment.

The MUSE 210LND and MUSE 210LN are advanced processed active line array systems designed for professional audio applications. Engineered for versatility, the MUSE 210LND accommodates configurations ranging from two to sixteen modules, supporting everything from small venue setups to large-scale outdoor events. Each unit features dual custom 250mm woofers with 64mm high-excursion voice coils and two B&C compression drivers with 25mm throats. A central horn and optimised waveguide, developed using BEM simulations, deliver precise 90-degree horizontal dispersion and extended frequency response from 800Hz to over 18kHz. Constructed from 15mm birch plywood, the cabinet includes integrated suspension hardware for secure rigging at variable angles. The MUSE 210LND incorporates an 800 plus 400-watt RMS amplifier with TCP IP connectivity, supporting AES70 protocol and DANTE-compatible 24-bit digital audio streaming. The system integrates with FBT’s INFINITO remote control software, housed within an aluminium chassis with intelligent ventilation and an OLED interface for efficient parameter management.

The MUSE 210 LA is a high-performance precision coverage vertical line array, designed for professional audio applications demanding clarity and control. Each MUSE 210 LA module features two custom-engineered 250mm woofers with 64mm high-excursion voice coils, paired with dual B&C compression drivers and a finely tuned waveguide delivering 90-degree horizontal dispersion. The system’s acoustic design ensures consistent cylindrical wave propagation and linear response across the frequency spectrum. Built from 15mm birch plywood, the MUSE 210 LA cabinet integrates robust aluminium handles and flying hardware, allowing up to 16 units per array with adjustable splay angles from 0 to 10 degrees in one-degree steps. The onboard 600 plus 300 watt Class-D amplifier and sealed die-cast chassis ensure reliability, while integrated DSP offers eight configuration presets. For extended low-end performance, the MUSE 210 LA can be paired with the SUBLine 218SA or MITUS 218SA subwoofers, providing adaptable solutions for demanding live sound environments.
