The DM NAX 2XLRI 1G is a single gang wall plate designed to integrate professional audio sources into a DM NAX audio over IP distribution system. Featuring two front panel XLR connectors, it supports both line and microphone level input with optional 48V phantom power. Rear panel connections include a five pin line level output and an Ethernet port that provides both power and network connectivity via PoE. Built on the AES67 standard, the DM NAX 2XLRI 1G supports configuration via web interface, SIMPL Windows, C Sharp, and RESTful API. It offers full DSP control with a five band EQ and input level management. The unit functions as both an encoder and decoder, transmitting and receiving DM NAX, AES67, and Dante streams. Compatible with DM NVX through AES67, the DM NAX 2XLRI 1G is ideal for expanding distributed audio systems in commercial AV environments, with easy integration into existing Crestron network infrastructures.
Brand: Crestron
-
DM-NAX-AUD-USB

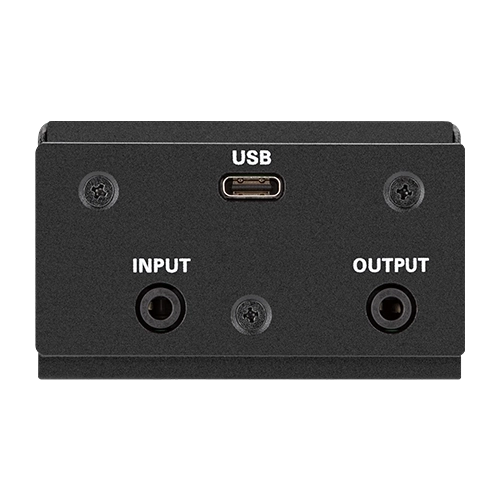

The DM NAX AUD USB is a versatile audio over IP interface designed to integrate USB audio into a DM NAX audio distribution network. It functions as both an encoder and decoder, supporting bidirectional stereo USB audio via a front-mounted USB C port, and analogue line level input and output through 3.5 mm TRS connectors. Housed in a compact enclosure, the DM NAX AUD USB can be installed in a standard single gang electrical box, under furniture, or on a rack rail. It connects to the network using Ethernet for PoE, control, and audio streaming. Built on AES67 standards, the DM NAX AUD USB supports integration with DM NVX systems and Dante networks through compatibility mode. It offers DSP features including 10 band EQ, tone control, delay adjustment, and loudness management. Configuration is available through a web interface, SIMPL Windows, RESTful API, or C#, allowing streamlined deployment across enterprise-grade AV environments.
-
DM-NAX-AUD-IO

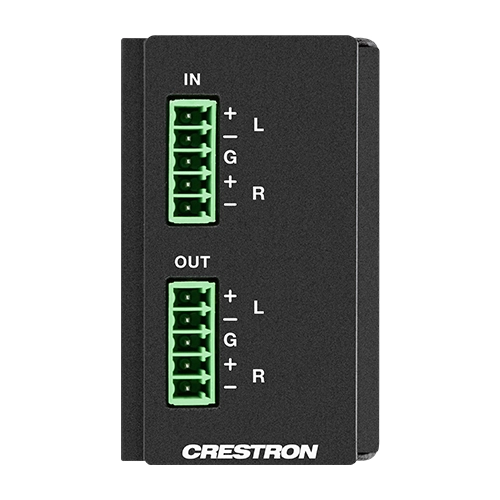

The DM NAX AUD IO is a professional-grade audio over IP converter that integrates stereo balanced and unbalanced analogue line-level inputs and outputs into a DM NAX audio distribution network. Designed for versatile installations, it can be mounted in standard single-gang electrical boxes, beneath tables, or on rack rails. This device functions as both an encoder and decoder, transmitting and receiving DM NAX and AES67 audio streams over standard IP networks. It supports Power over Ethernet and provides flexible control through a web interface, SIMPL Windows, C Sharp, or RESTful API. The DM NAX AUD IO is compatible with DM NVX and third-party AES67 and Dante systems when configured via Dante Controller. Integrated digital signal processing includes EQ, loudness control, delay adjustment, and tone shaping. Its connectivity and configuration features make the DM NAX AUD IO suitable for scalable, IP-based audio deployments in professional environments.
-
DM-MD32X32-CPU3
The DM MD32X32 CPU3 is a fully modular 32×32 DigitalMedia matrix switcher, designed for high-performance distribution of digital AV signals across large-scale systems. Built on the 3 Series platform, it supports SD, HD, UHD, 2K, and 4K60 4 4 4 HDR video formats with advanced HDCP, EDID, CEC, and USB signal management. Capable of routing up to 32 input sources to 32 outputs, including HDMI, HDBaseT, and H.264 streaming, the DM MD32X32 CPU3 is ideal for demanding AV environments. It integrates Ethernet switching, audio breakout for 7.1 and stereo channels, and offers scalable streaming over IP. QuickSwitch HD and Auto Locking technologies enable fast signal switching, while distributed scaling ensures consistent display performance. The system includes a web-based interface, USB HID routing, and centralised control via Crestron Toolbox. The DM MD32X32 CPU3 delivers a secure, high-bandwidth signal routing backbone suitable for enterprise, education, and professional AV installations.
-
DM-MD16X16-CPU3
The DM MD16X16 CPU3 is a fully modular 16×16 DigitalMedia matrix switcher designed for high-performance AV signal distribution across commercial environments. Built on the 3 Series platform, it supports rapid digital video and audio switching while delivering uncompressed 4K60 4 4 4 HDR signal routing. This matrix switcher accommodates up to 16 AV sources and provides flexible configuration options for DM, HDBaseT, HDMI outputs, and H264 streaming. It integrates Ethernet and USB routing capabilities and includes comprehensive tools for system management via front panel controls, Crestron Toolbox software, and a web interface. The DM MD16X16 CPU3 ensures compatibility with HDCP content, offers advanced EDID and CEC management, and supports scalable multiroom audio with simultaneous stereo and surround output. With its support for DigitalMedia 8G Plus and HDBaseT standards, as well as enterprise-grade security and QuickSwitch HD technology, the DM MD16X16 CPU3 provides a robust foundation for professional AV distribution.
-
DM-MD8X8-CPU3
The DM MD8X8 CPU3 DigitalMedia Matrix Switch is a modular 8×8 AV switching solution designed for high-performance signal distribution across professional environments. Built on the 3 Series platform, it supports rapid, lossless switching of SD, HD, UHD, 2K, and 4K60 444 HDR content. The system accommodates HDMI, HDBaseT and DM outputs, with streaming capabilities via H264 for integration across multiple locations. It includes advanced EDID and CEC management, QuickSwitch HD and Auto Locking technologies, scalable video output, and flexible audio routing for 7.1 surround and stereo signals. The integrated Ethernet switch, USB signal routing, and Crestron control enable streamlined deployment and management. With compatibility for DigitalMedia 8G plus, HDBaseT devices, and legacy DM products, the DM MD8X8 CPU3 provides reliable signal transport over a single CAT cable or fibre. Web-based configuration, private network mode, and scalable architecture make it ideal for enterprise, education and government applications requiring robust AV infrastructure.
